2 Post Lifts | Atlas PV10PX 10,000 lb Overhead 2 Post Car Lift
$ 2,664
$ 4,099
Atlas PV10PX 10,000 lb Overhead 2-Post Car Lift
To increase versatility, the PV10PX 2-post car lift includes a twelve-piece deluxe truck adapter set, compared to the standard eight-piece version found on many lifts. Reinforced rubber lift pads provide secure and durable contact with vehicle lifting points, ensuring stability during operation. Engineered for safety and reliability, the PV10PX has been trusted by thousands of users worldwide for more than a decade, making it one of the most popular above-ground lifts in the industry.
- Product Features
- 10,000 lb. capacity
- Commercial Grade

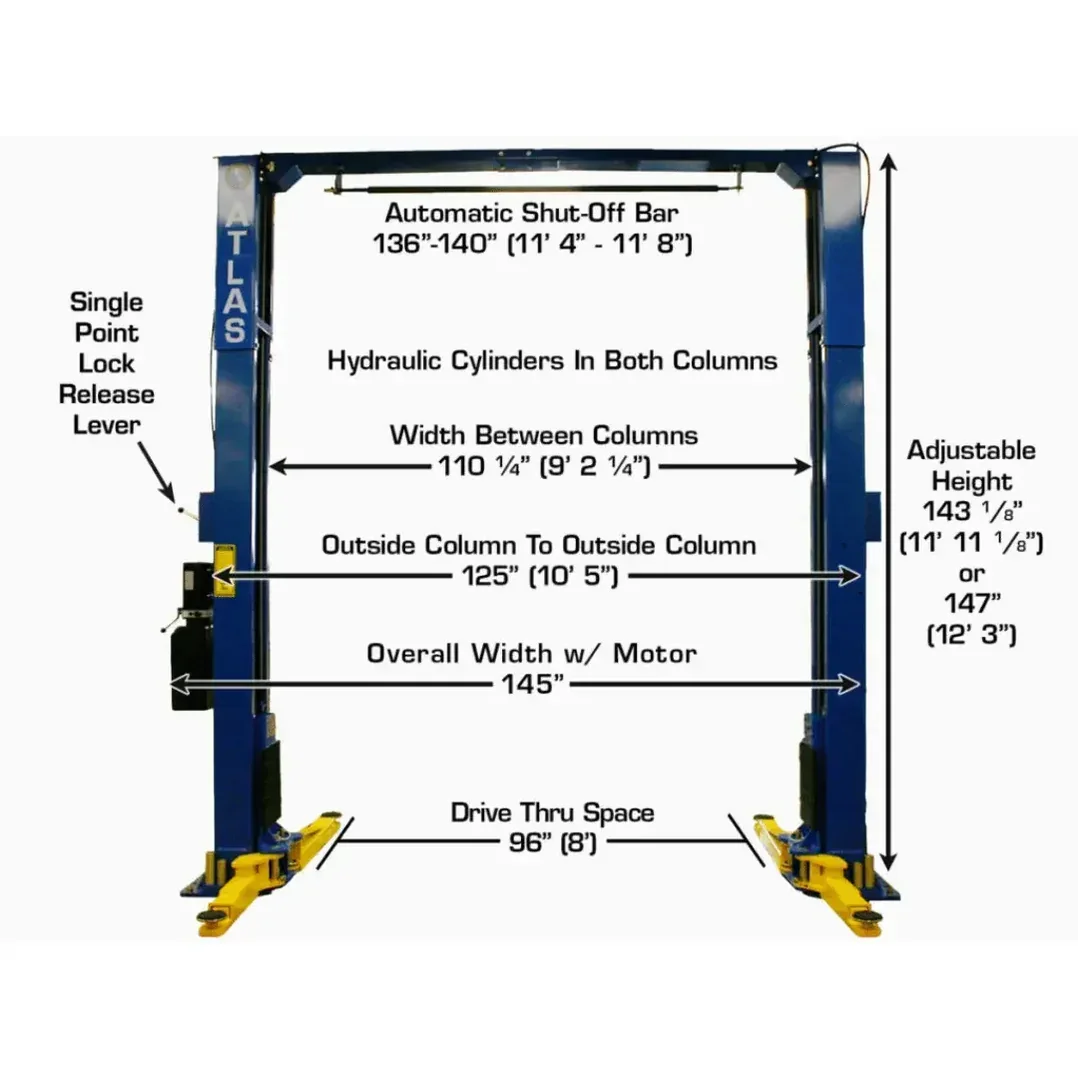

- Adjustable Height – 11′ 11 1/8″ or 12’3″

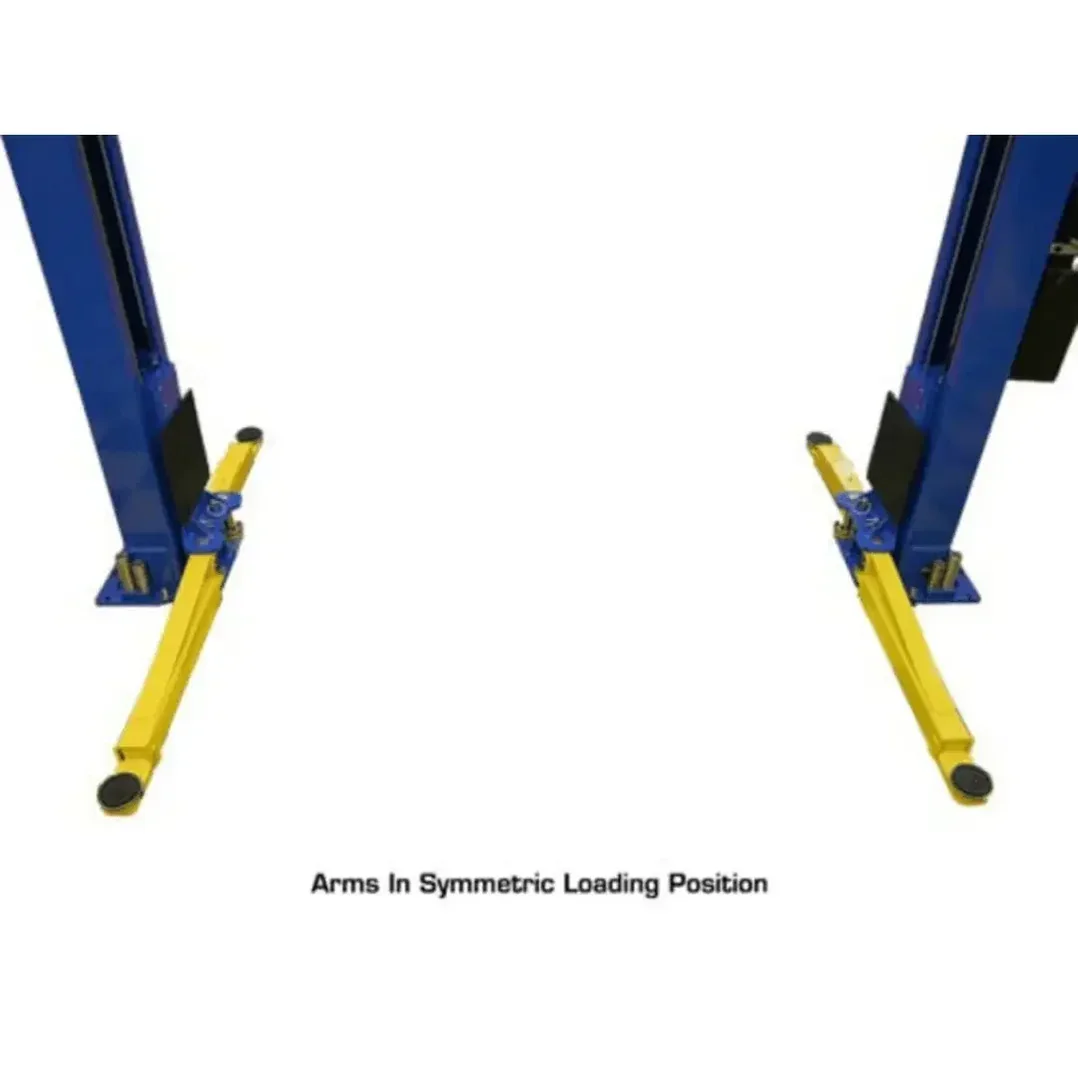

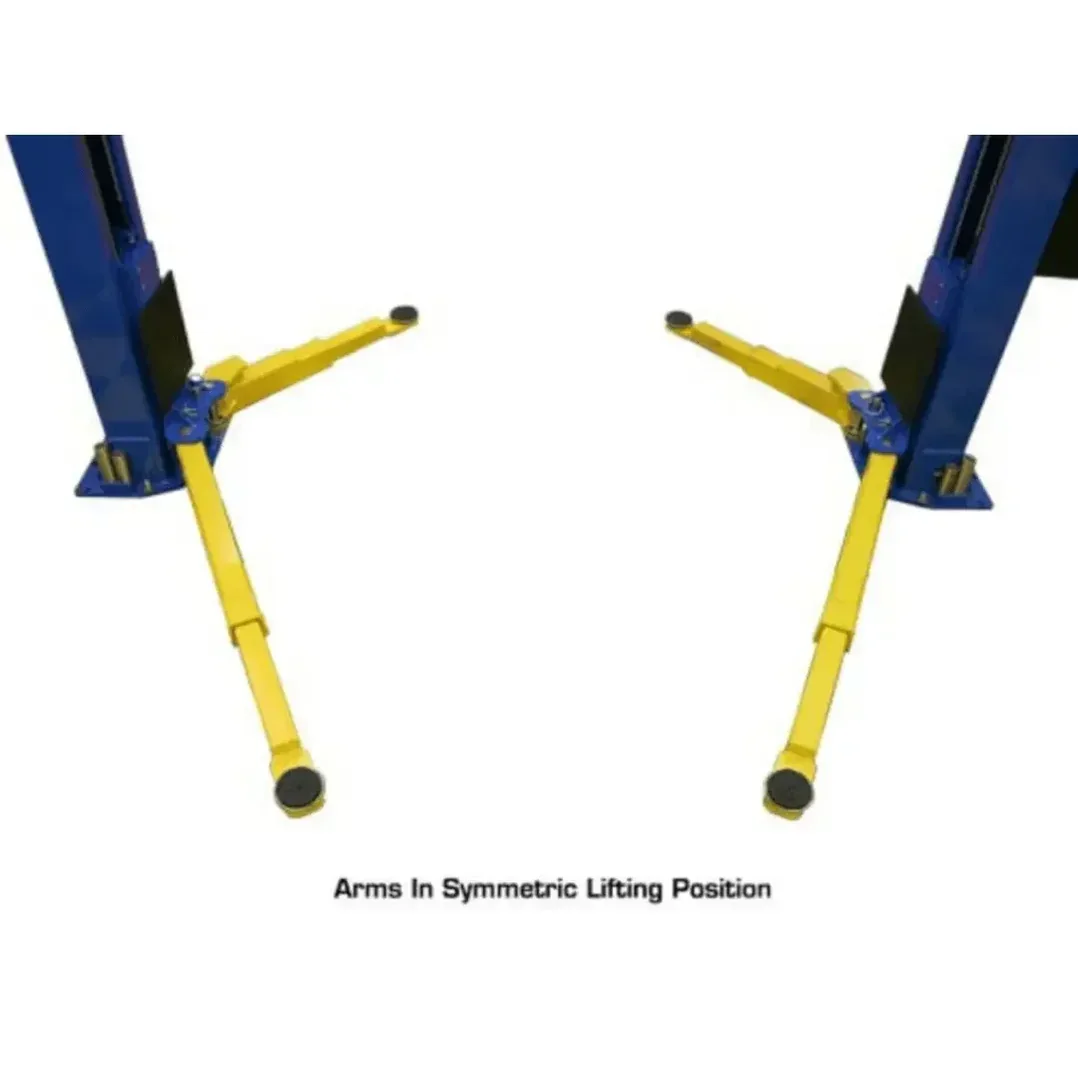

- Asymmetric/Symmetric Arms

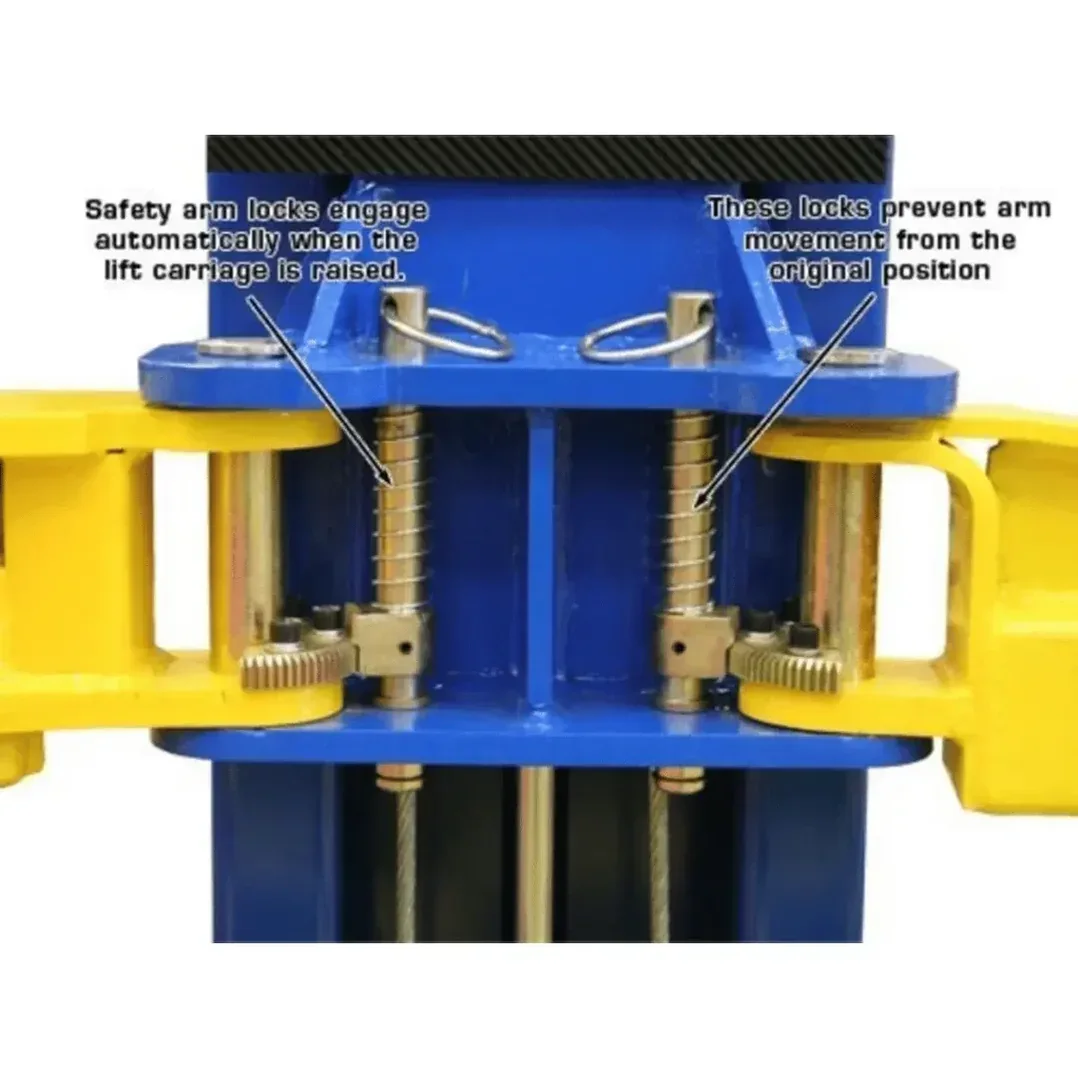

- Automatic Arm Restraints

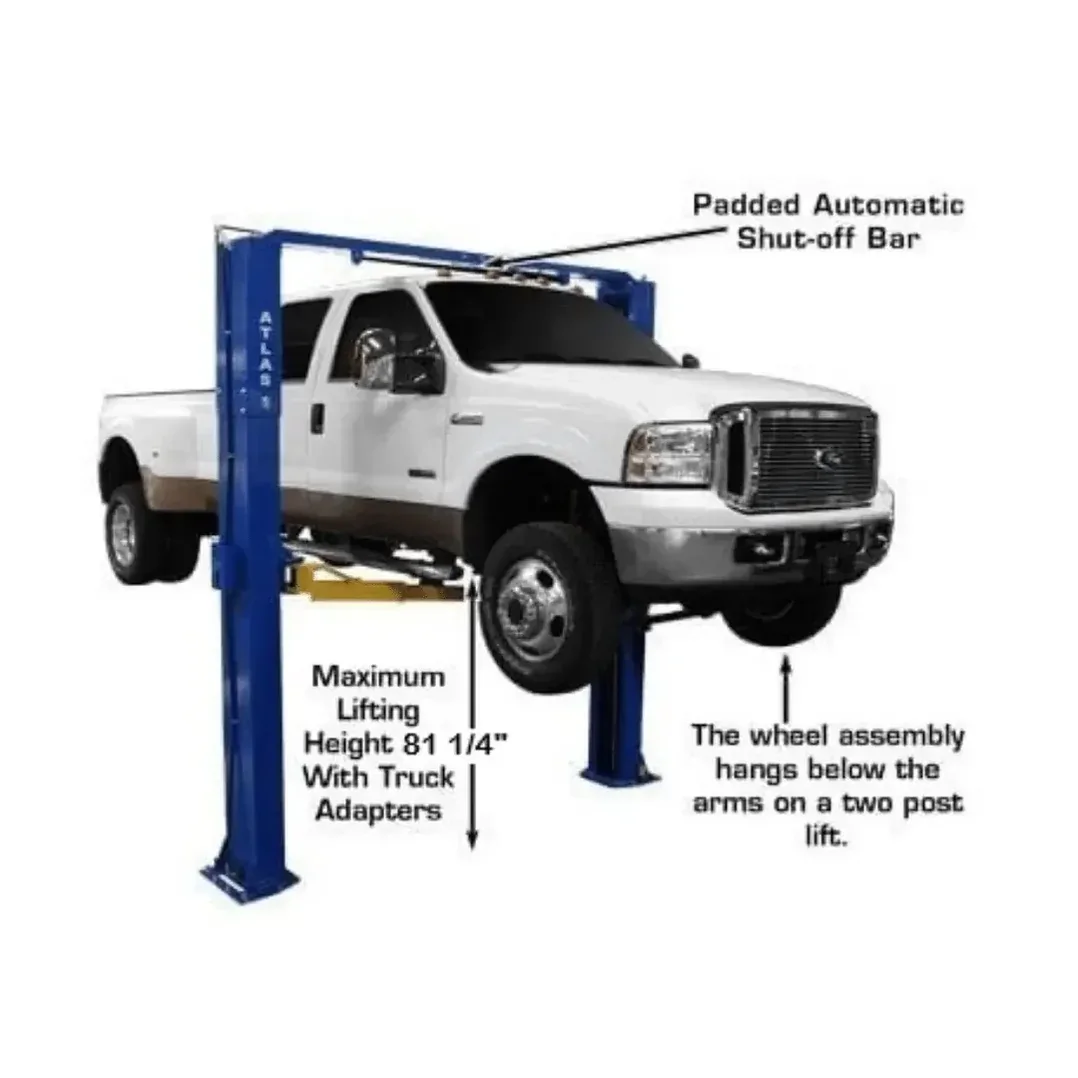

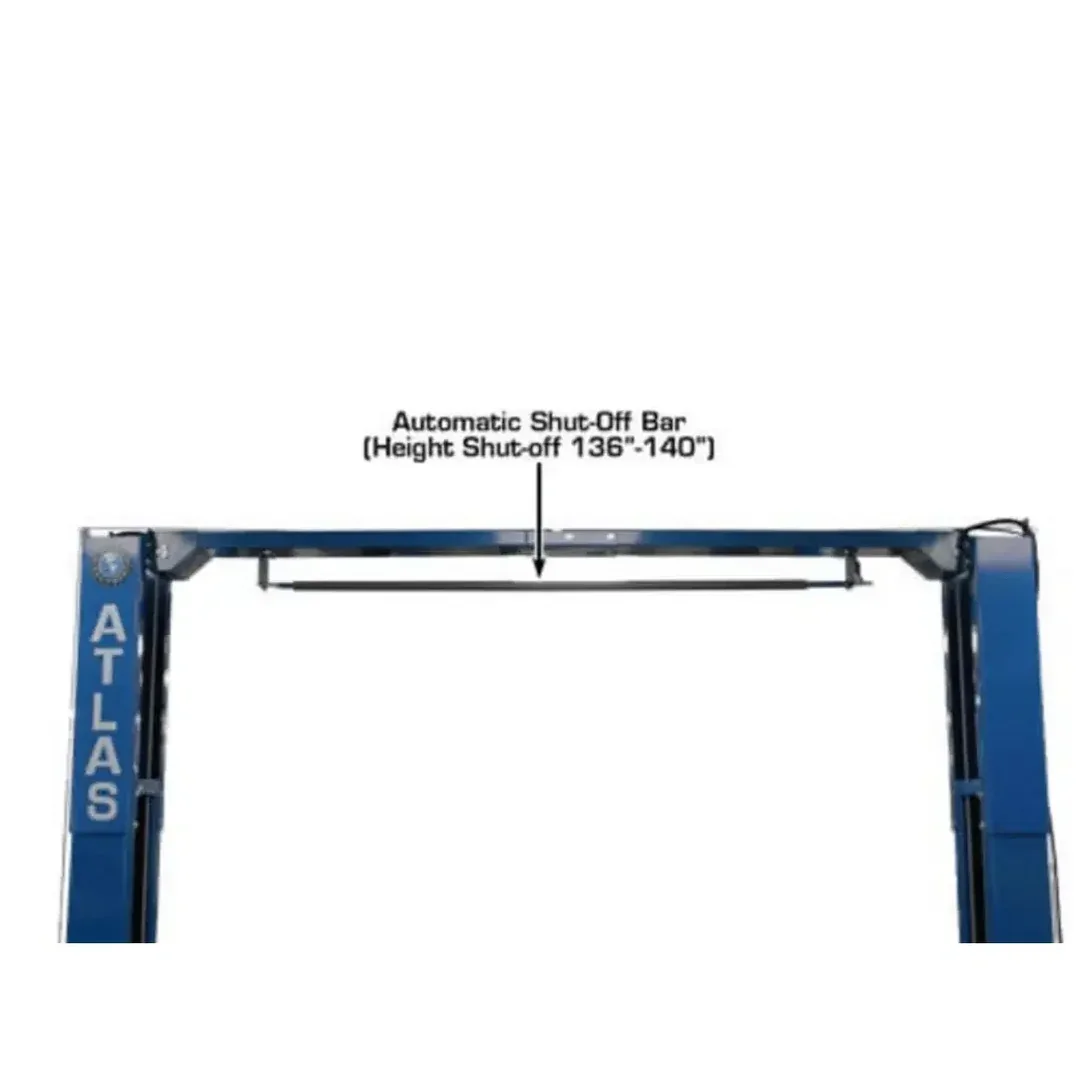

- “Padded” Shut-Off Bar
- Padded Carriages

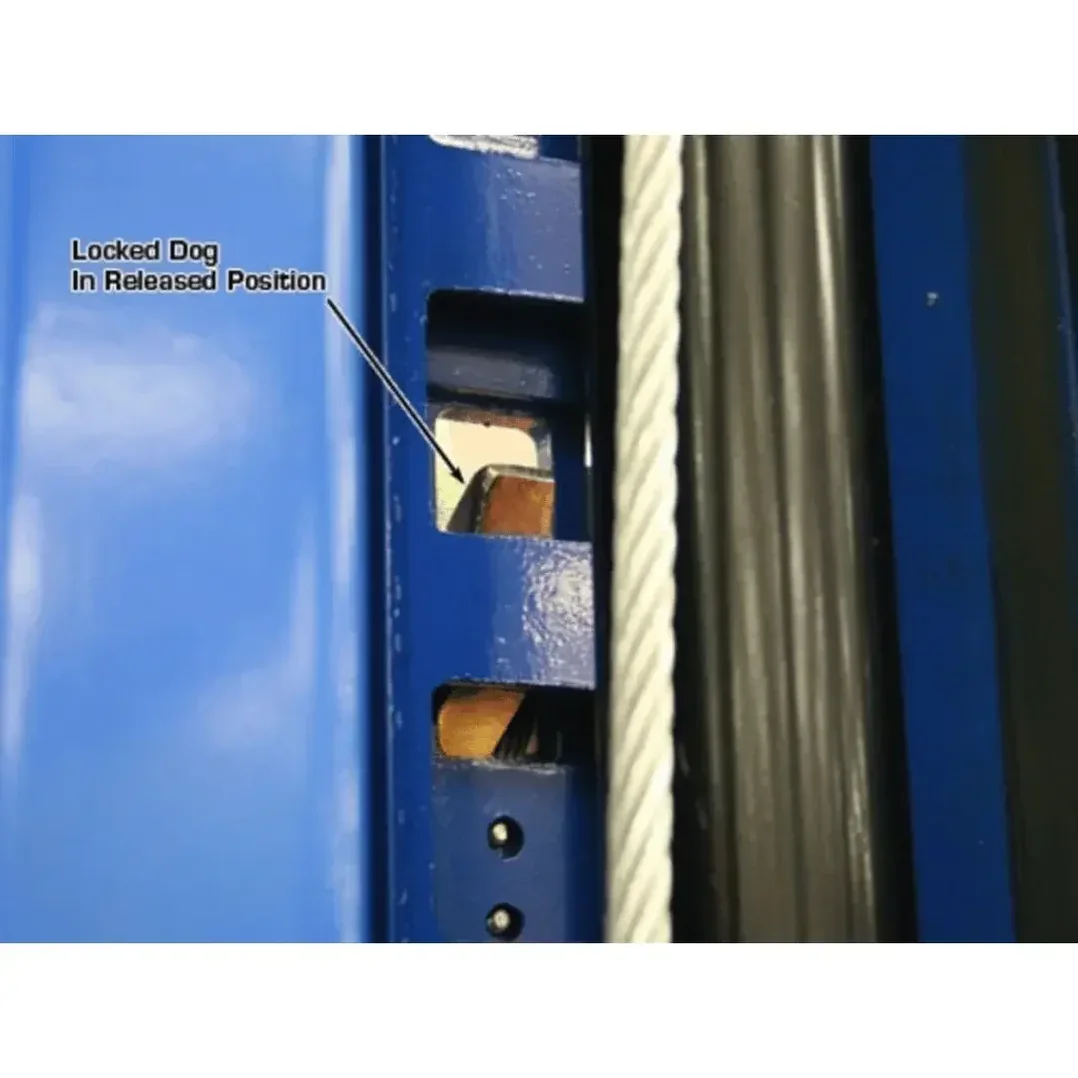

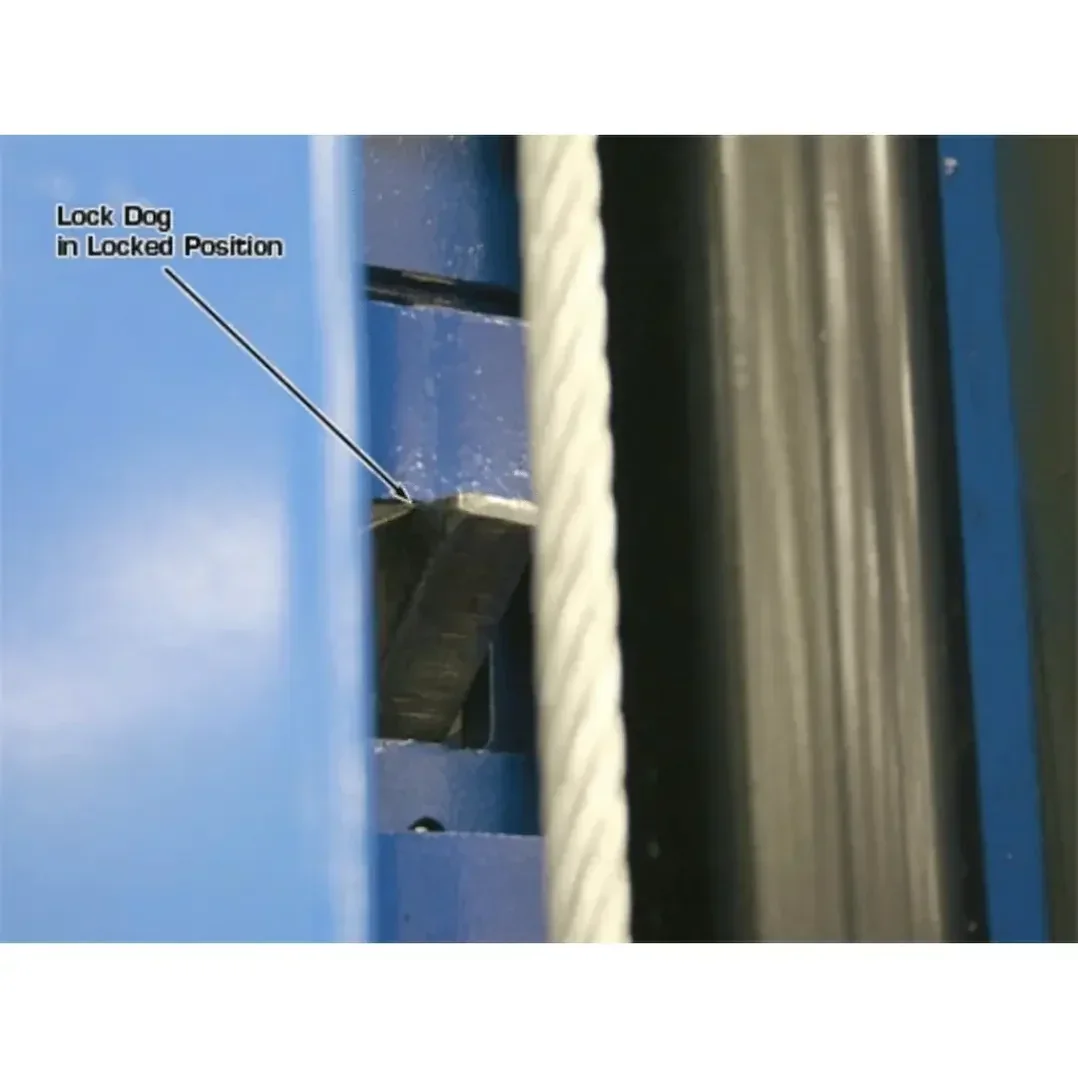

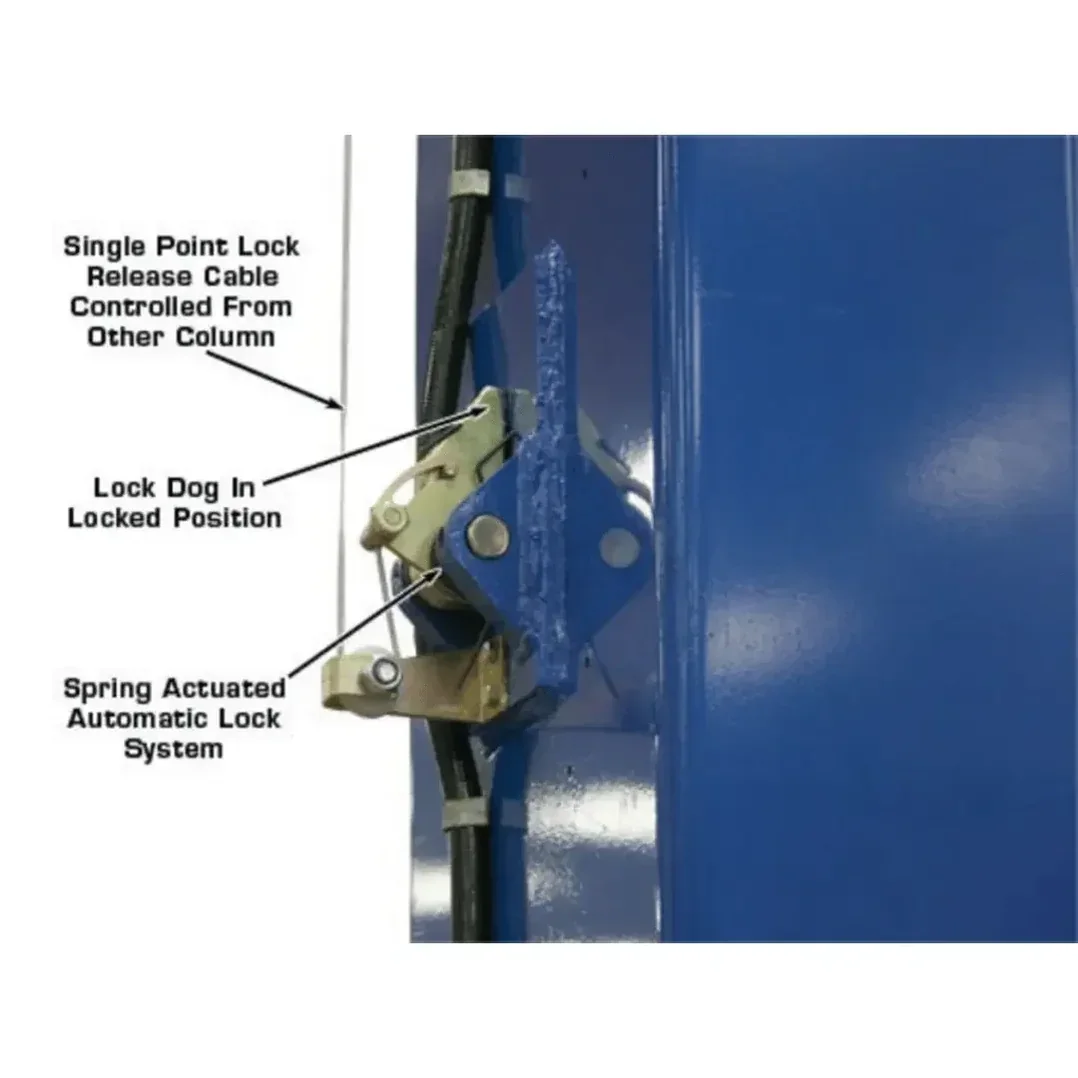

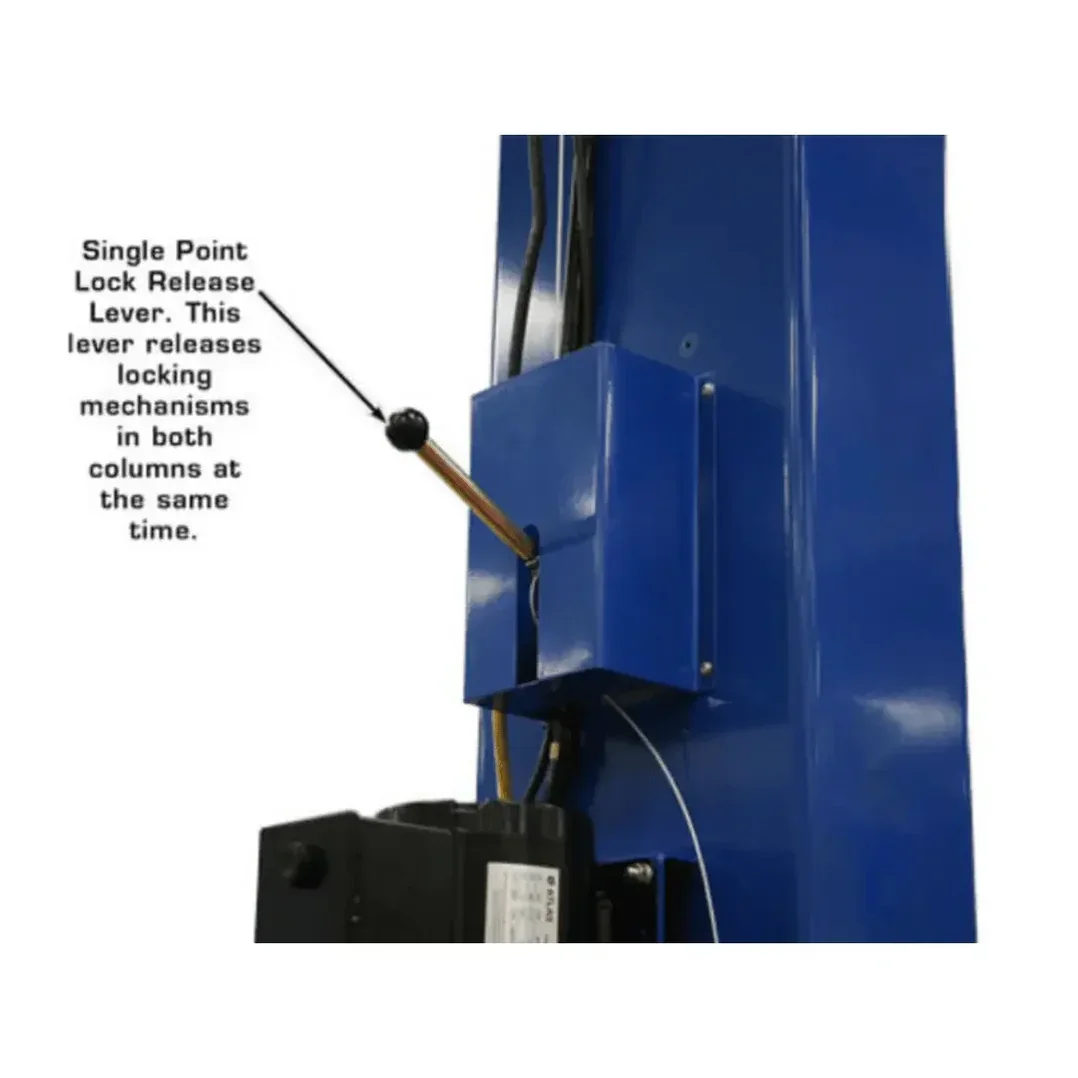

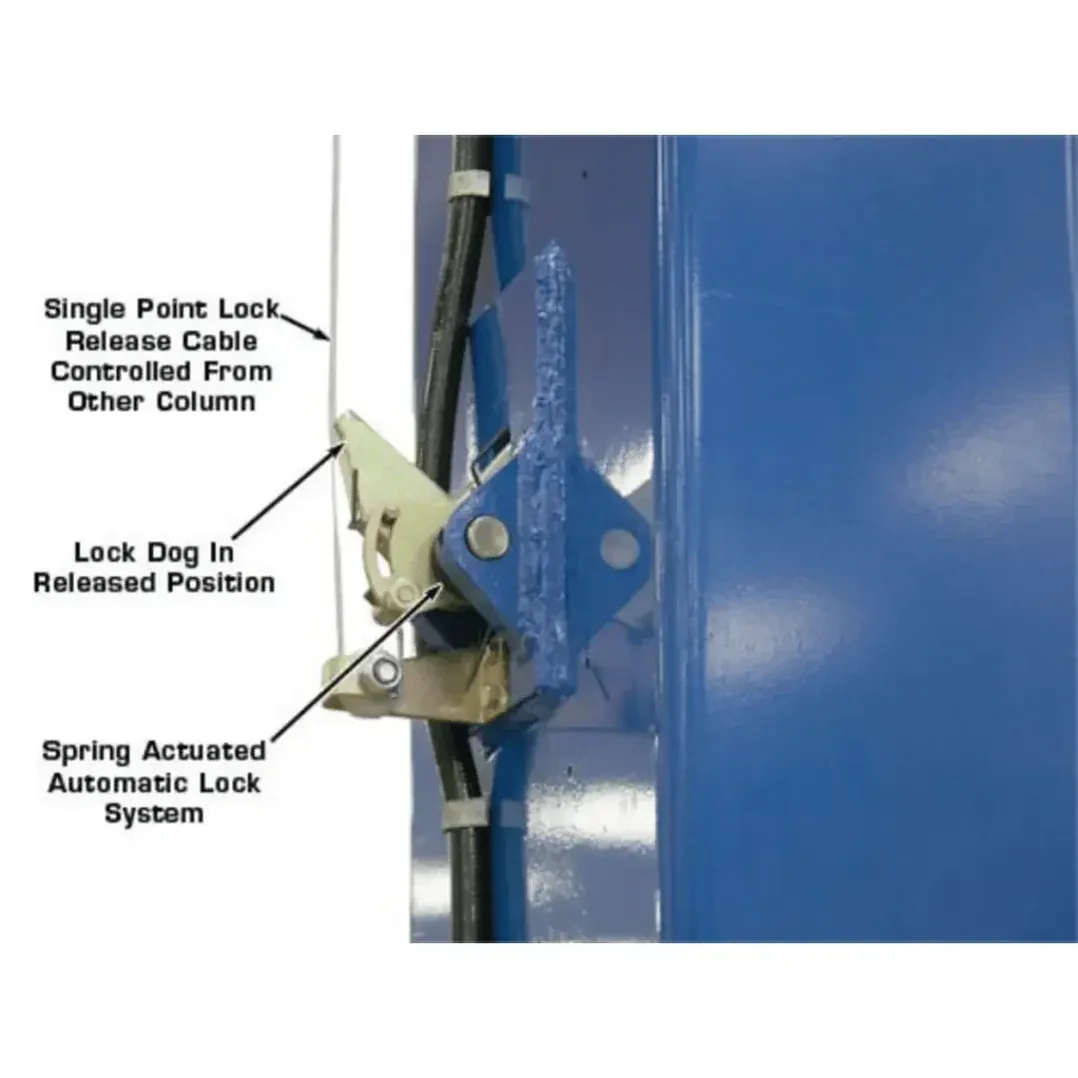

- Single Point Lock Release

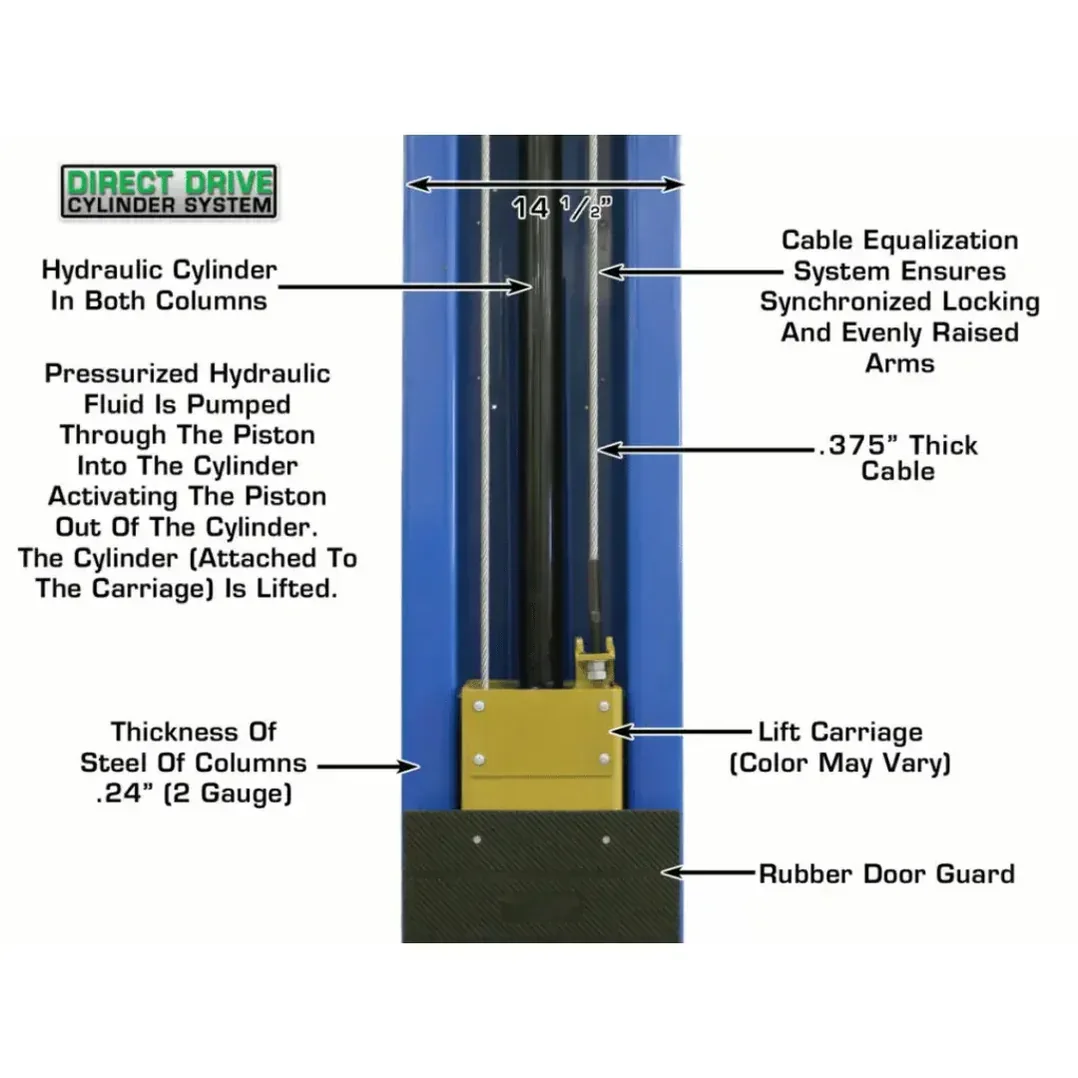

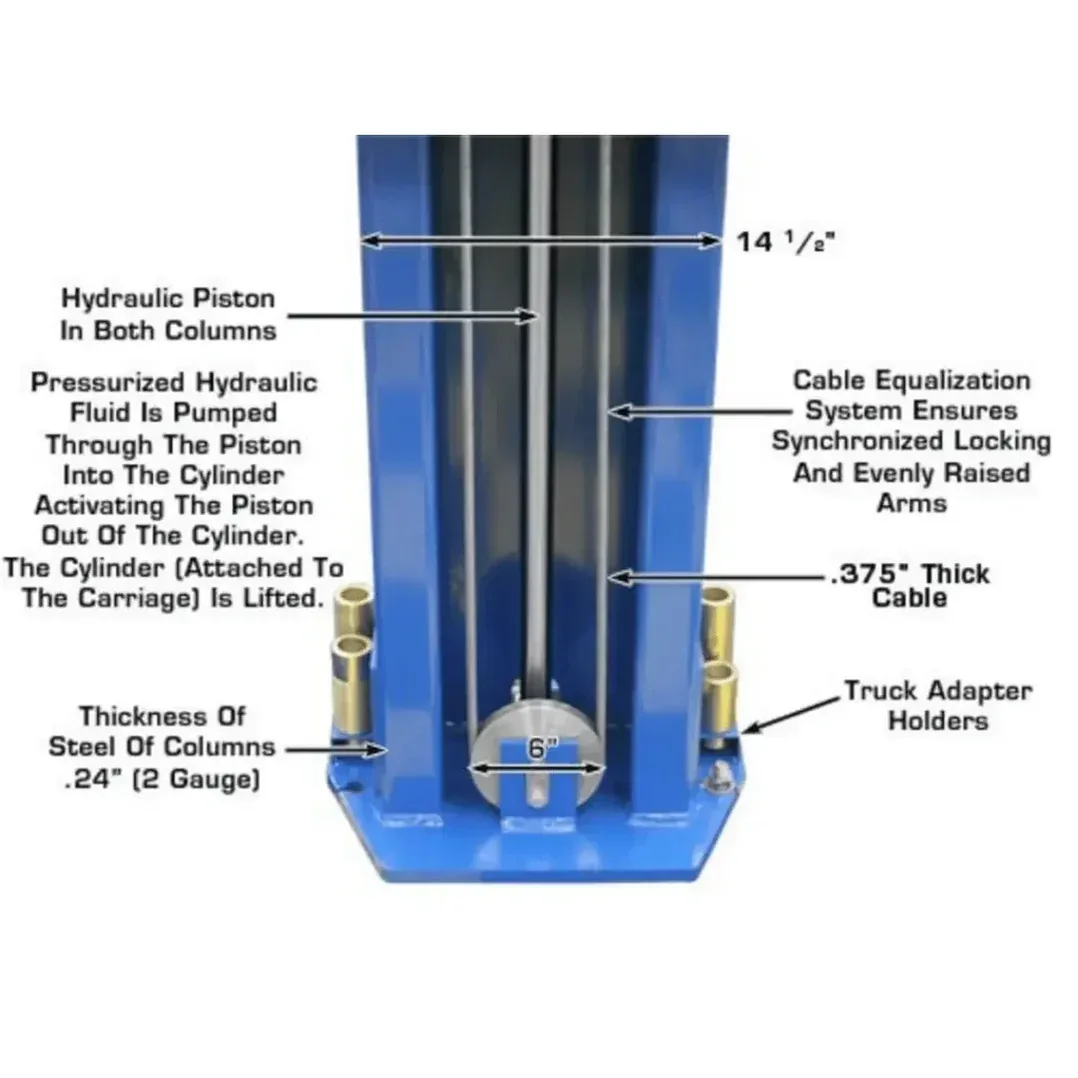

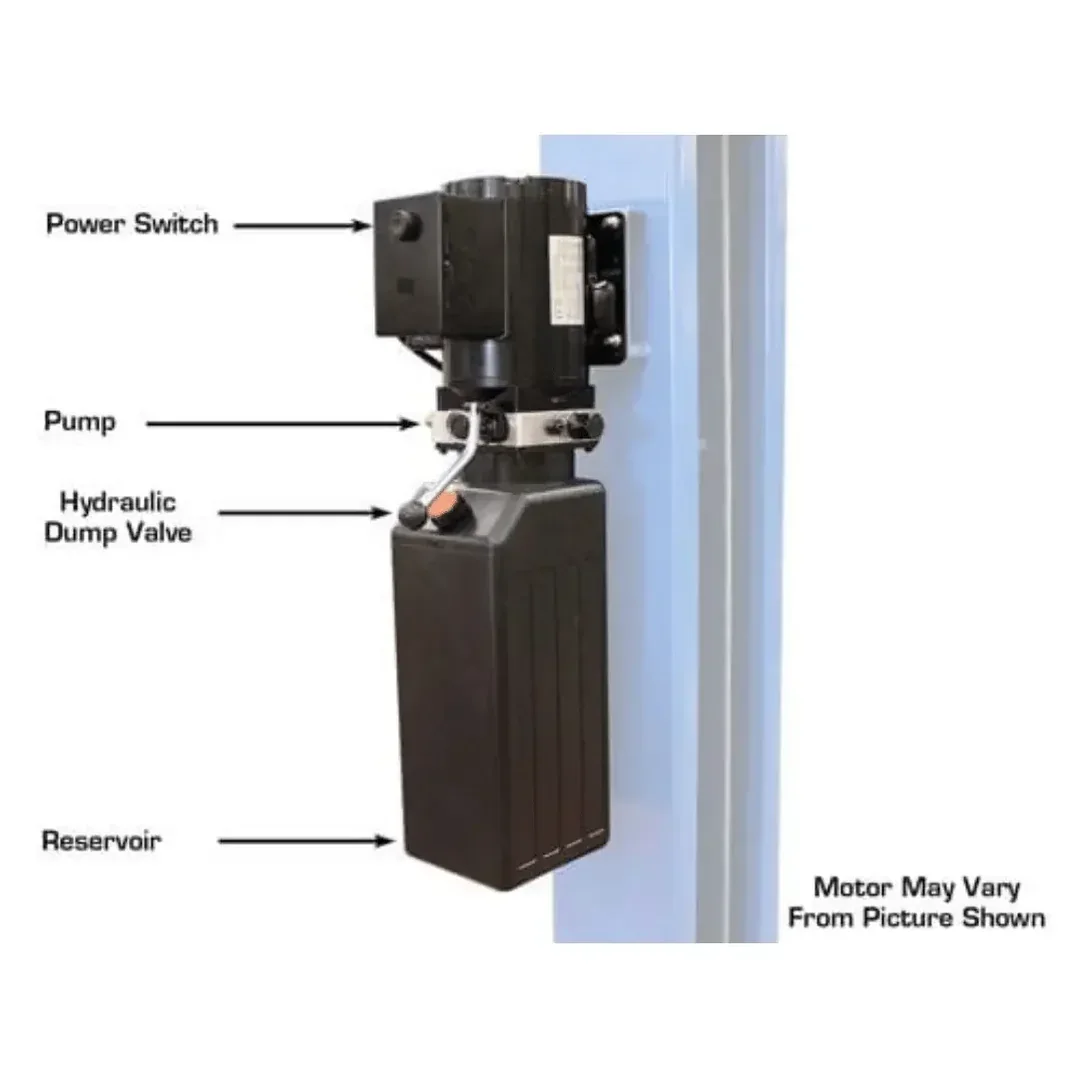

- Direct-Drive Cylinders
- Powder Coat Finish

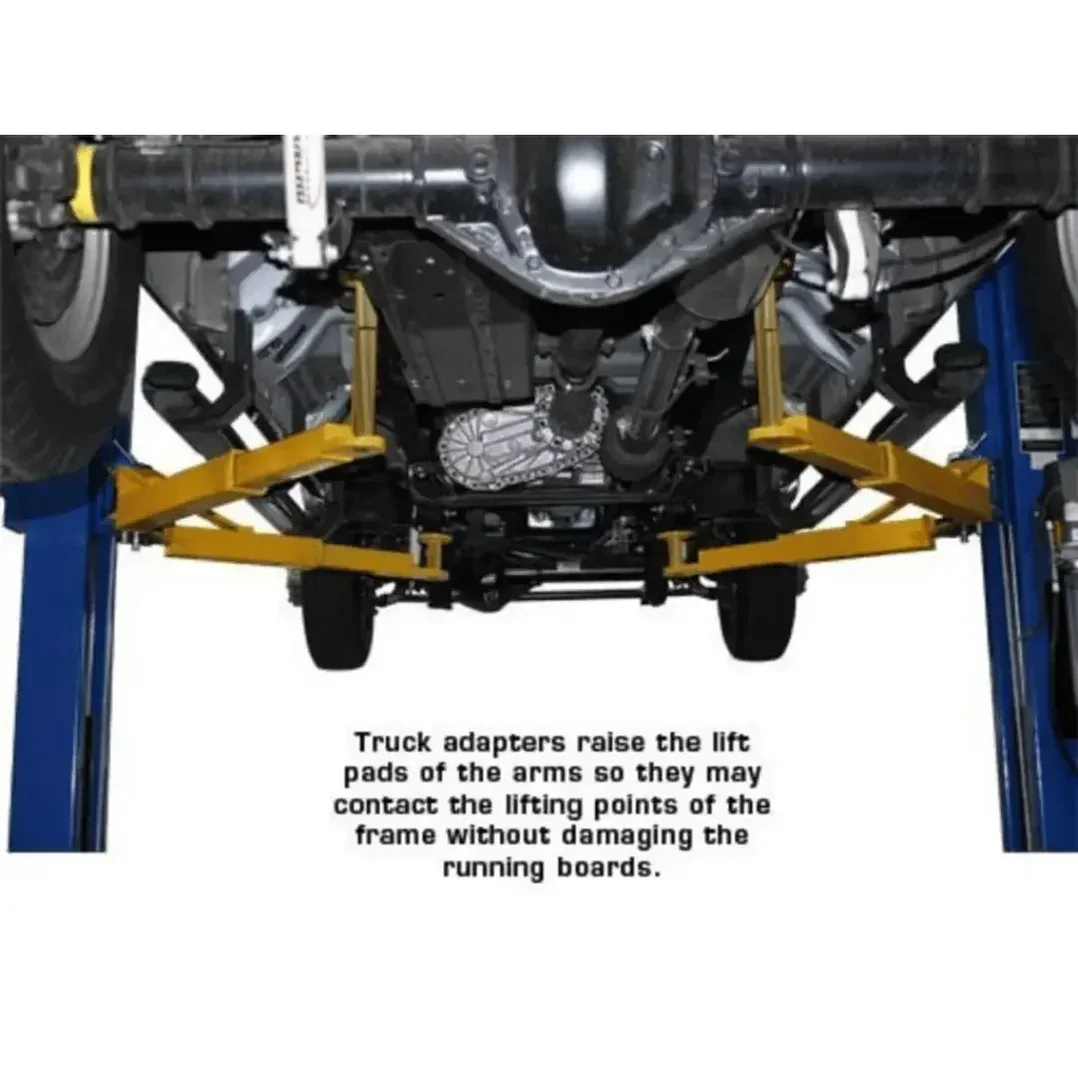

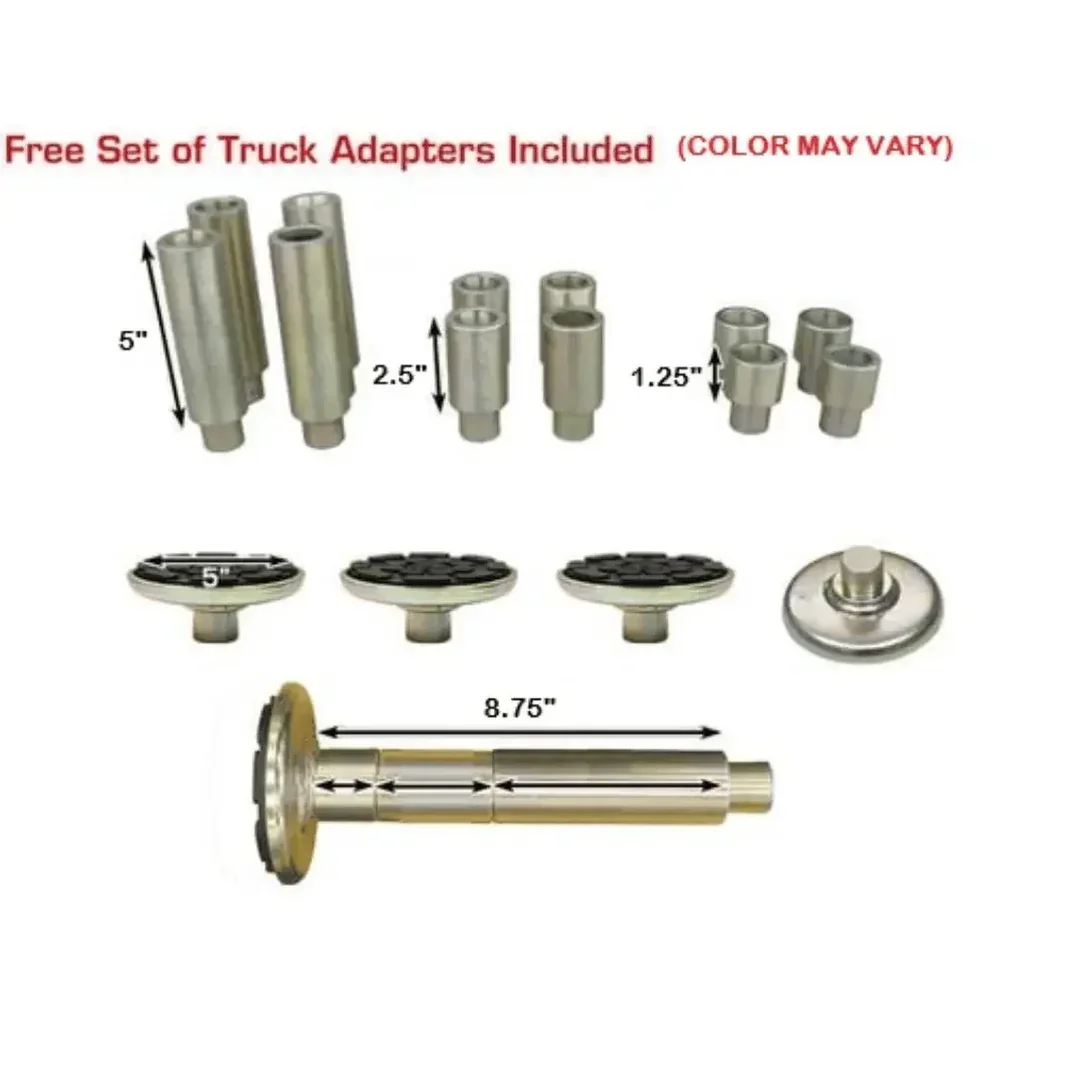

- Free 12 Piece Truck Adapter Set

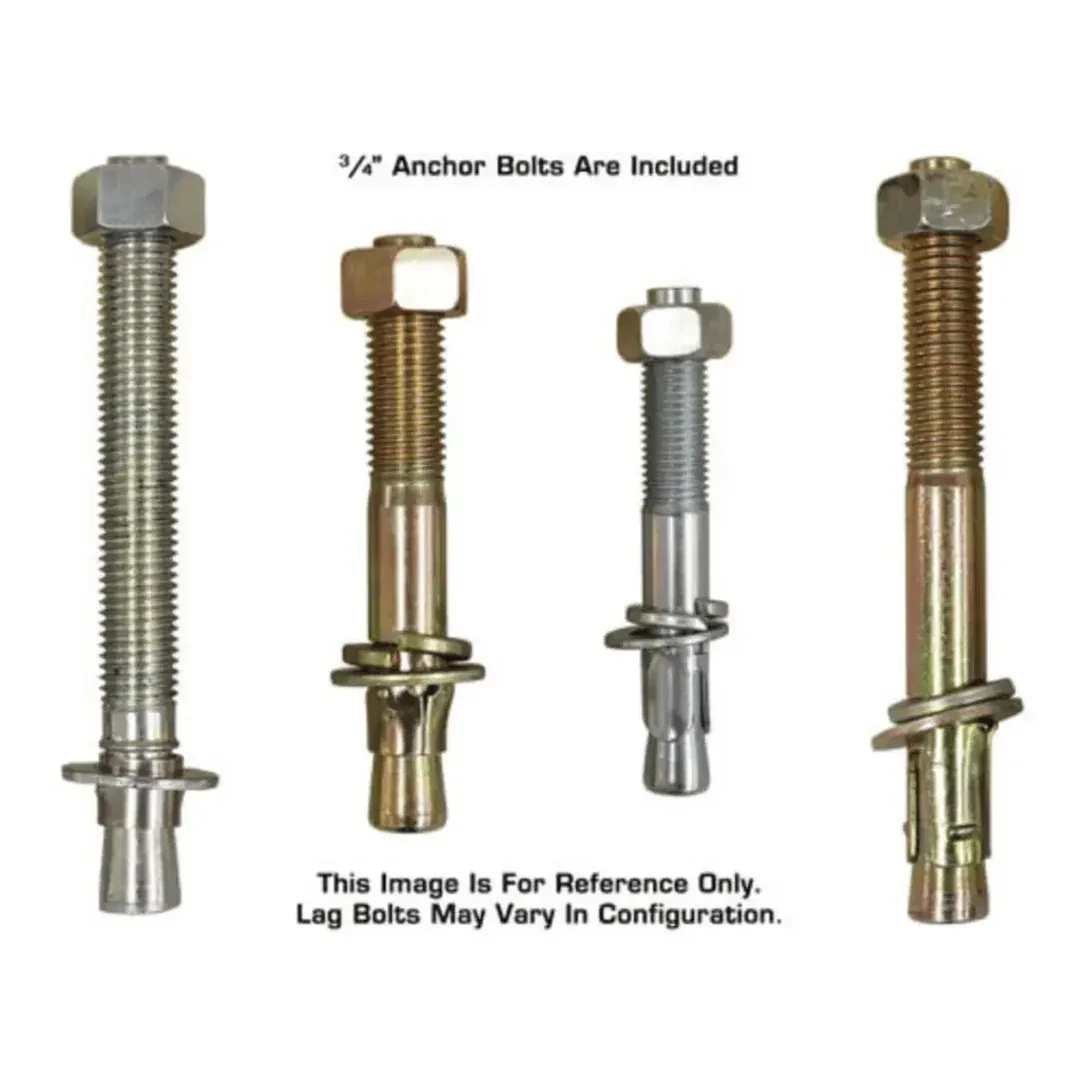

- Mounting Hardware Included
- Shipping Weight: 1,875 lbs.
- 5 yr Structural – 2 yr Hydraulic Warranty – Parts Only
Specification
| Model | Atlas PV10PX |
| Drive Thru Between Carriage | 90"–96" |
| Inside Columns | 110" |

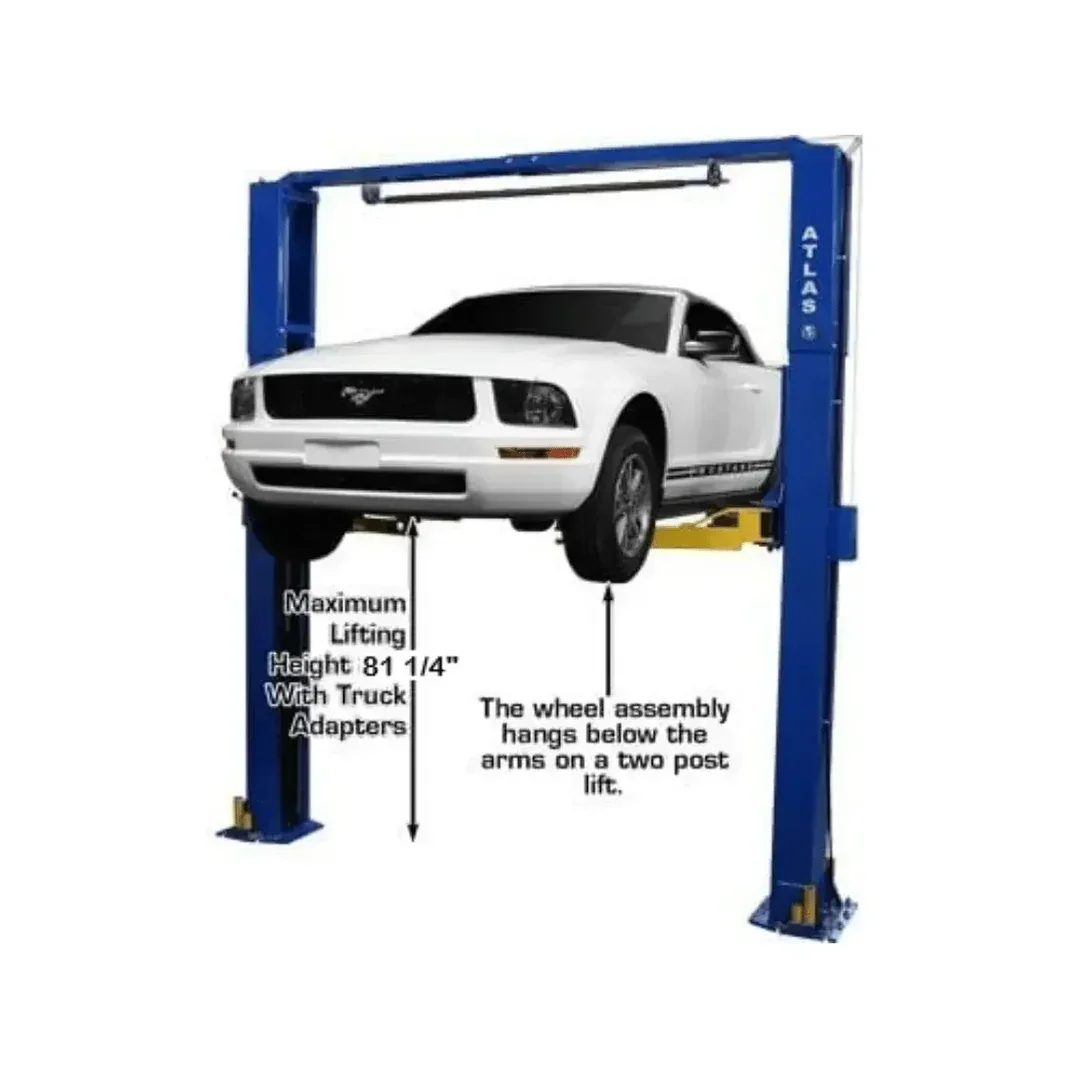

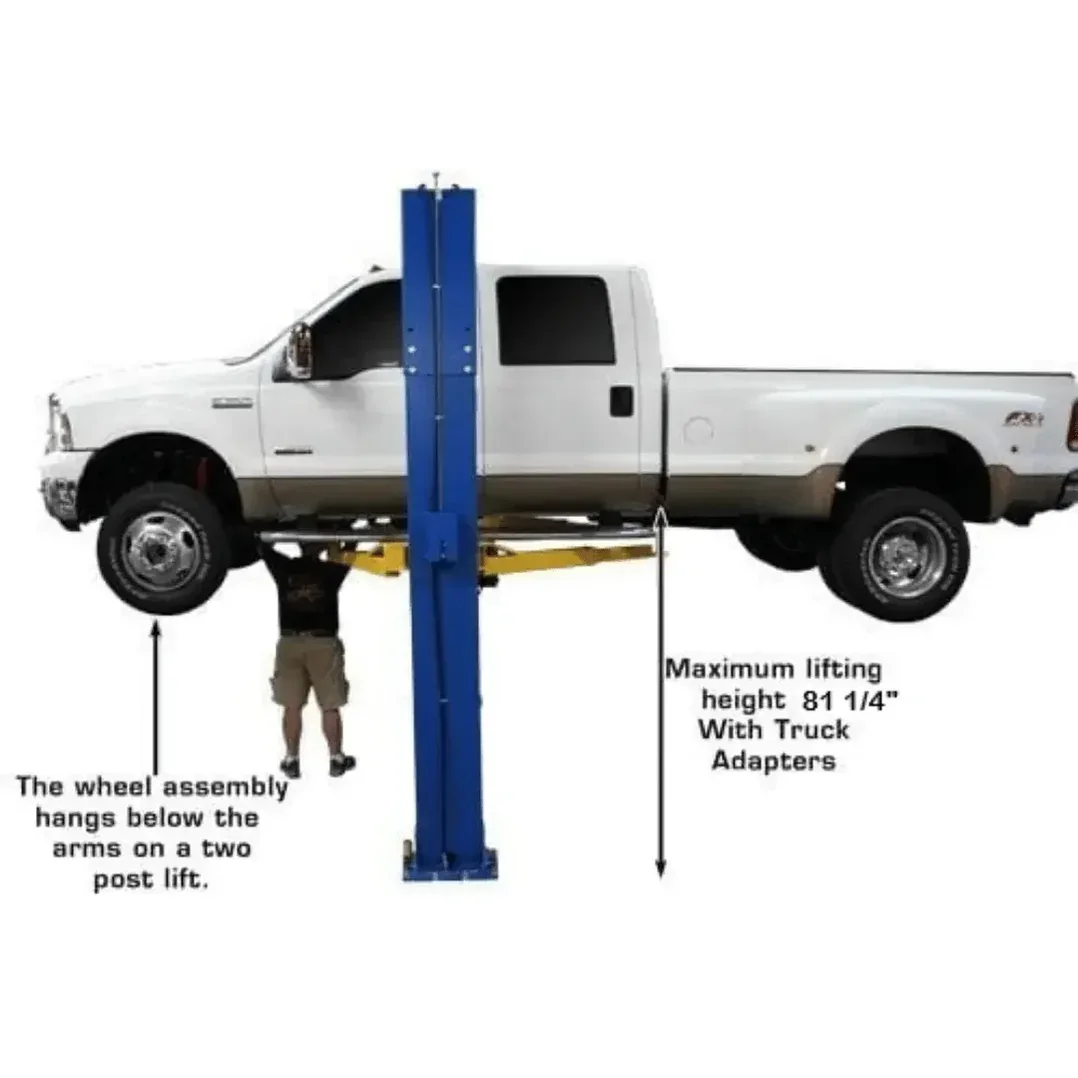

| Lifting Height (Top of Pad) | 72"–81" |
| Max Rise Under Arms | 72" |
| Minimum Pad Height | 4.5" |
| Motor | 220V |

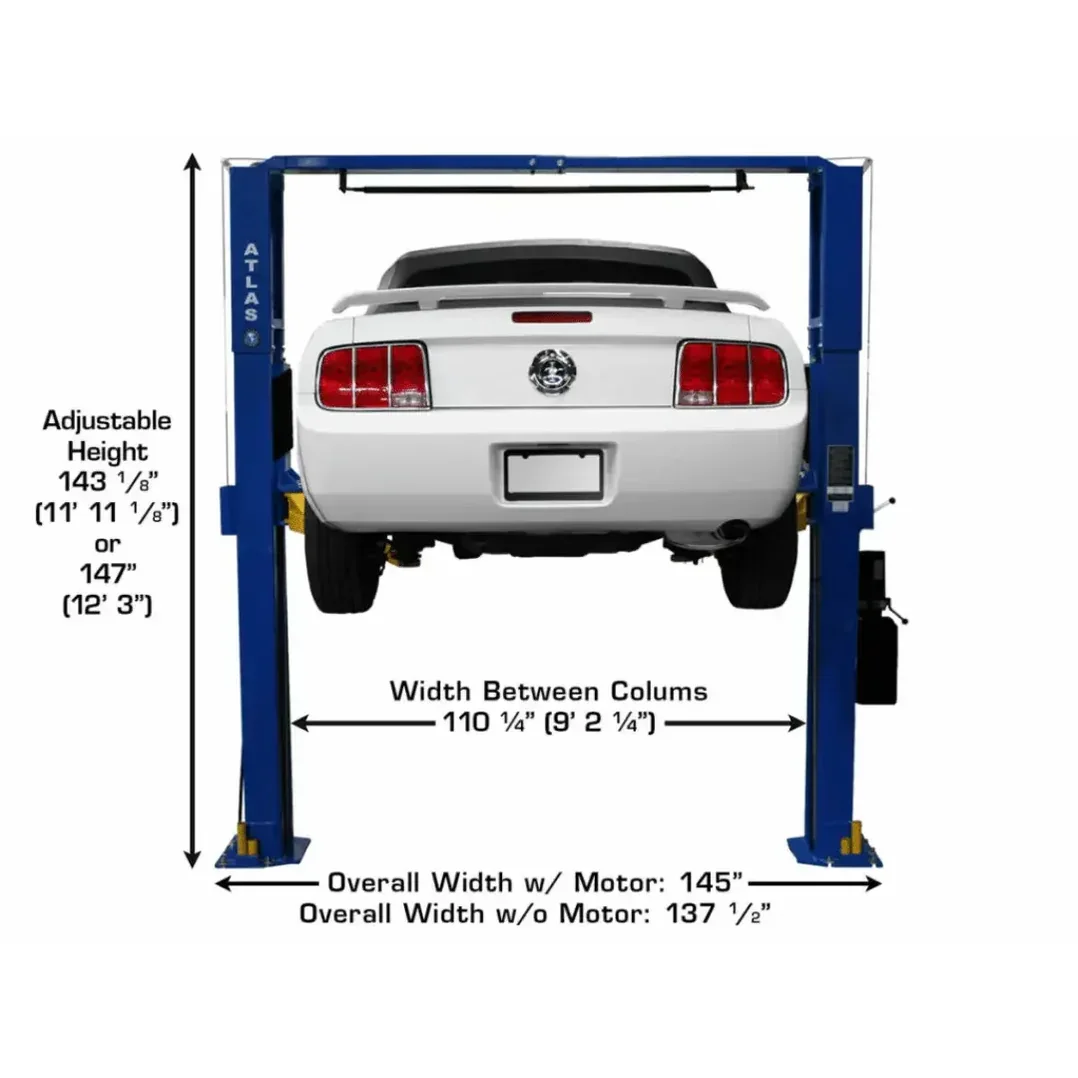

| Overall Width | 145" |
| Overall Height | 143"–147" |
| Overall Weight | 1,900 lbs |
| UPC | 810524029469 |
Resources
-
For more detailed information and guidance, you can download the following:
