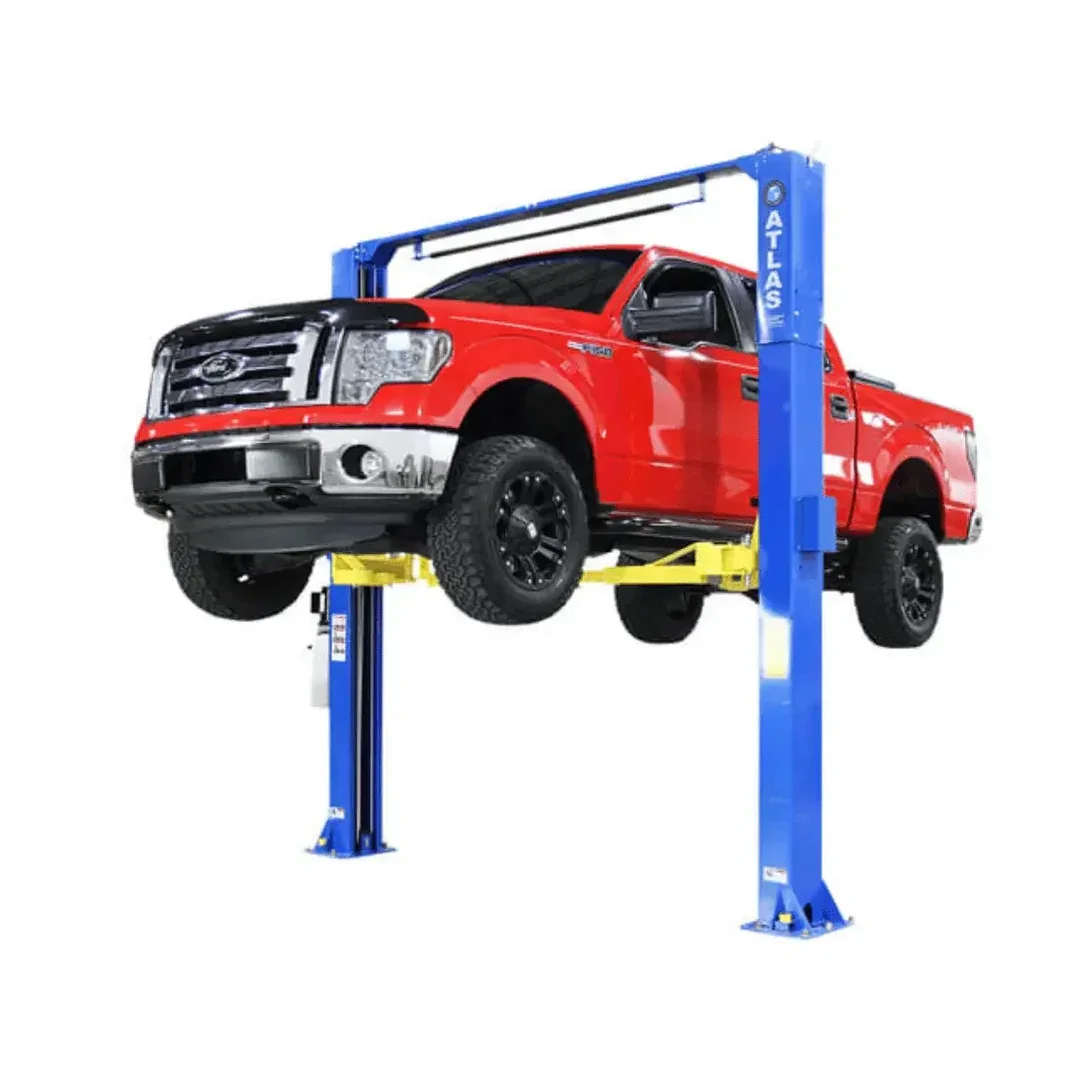

Atlas PRO-9D 9,000 lb 2-Post Overhead Lift
The Atlas® PRO-9D has symmetric columns and specially designed arms that can be set in either the symmetric or asymmetric position. The asymmetric/symmetric arm design offers an extremely low lift pad position on the EZ-metric lift arm configuration. This low pad height will allow the operator to position the lift arms under most small cars (with low pick up points) and heavier pick up trucks.

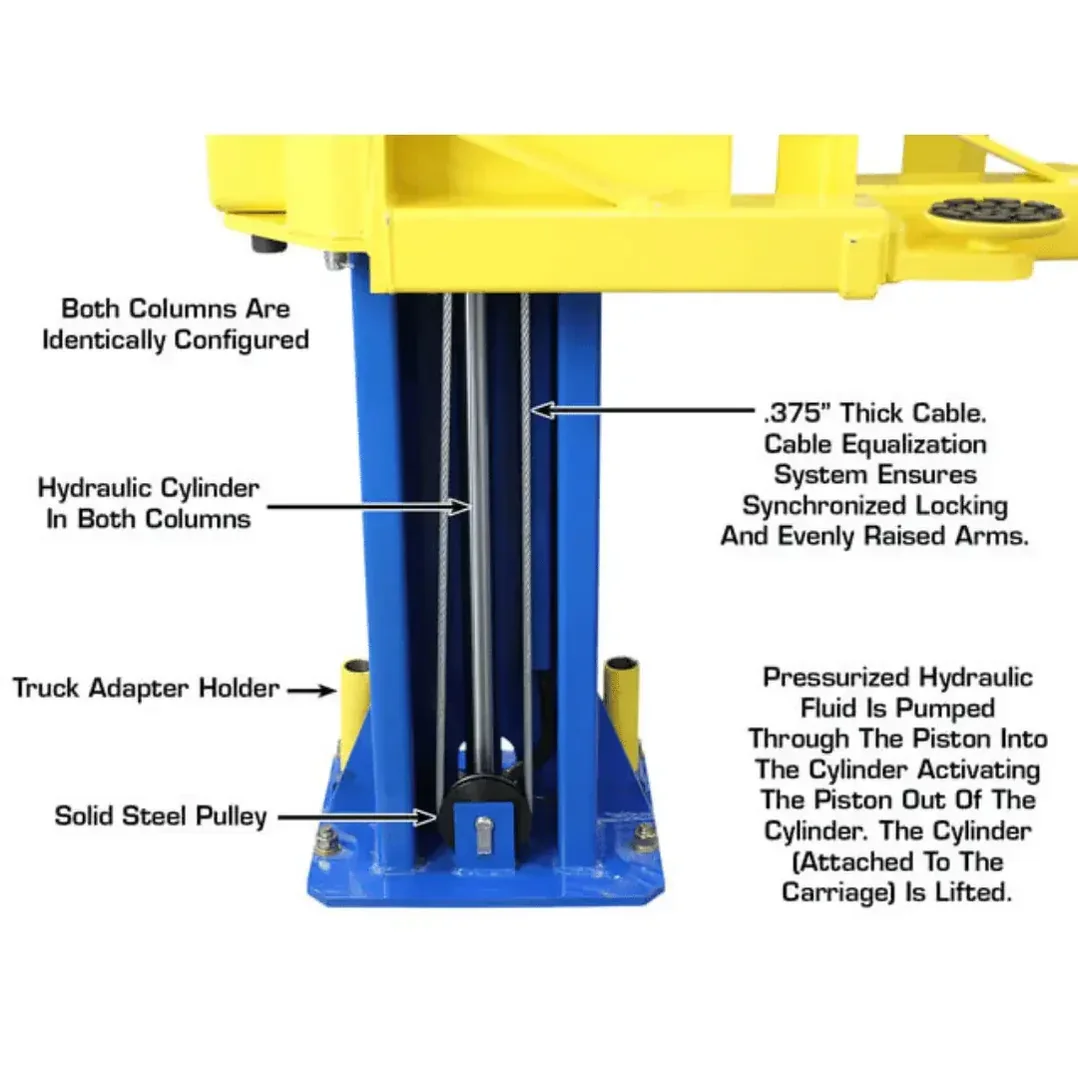

The PRO-9D has dual direct drive cylinder, this direct drive system, with fewer moving parts, ensures years of excellent lifting service from your Atlas above ground hoist.
- Product Features
- 9,000 lb. Capacity
- Overhead, Open-Floor design

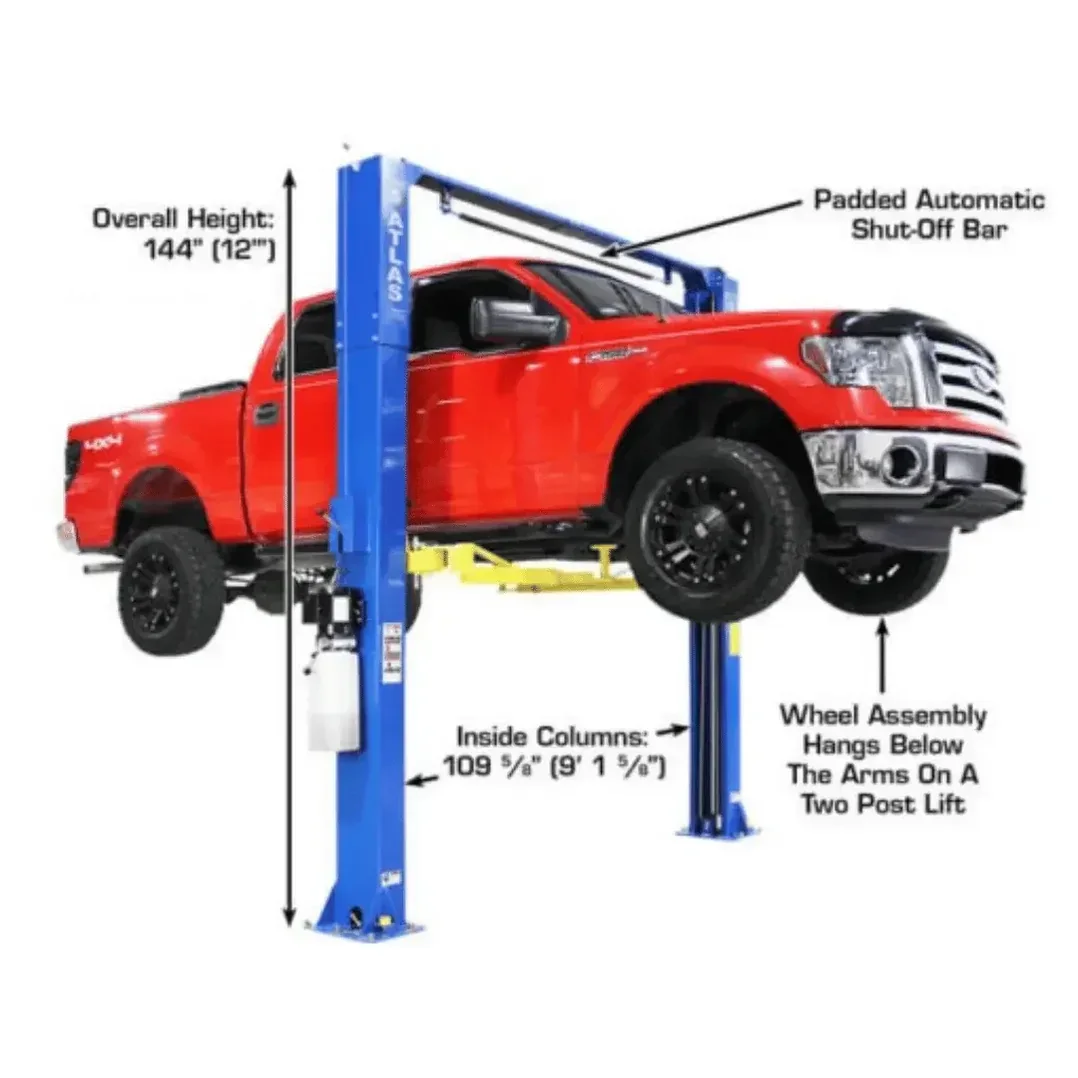

- Overall Height: 144″ (12′)

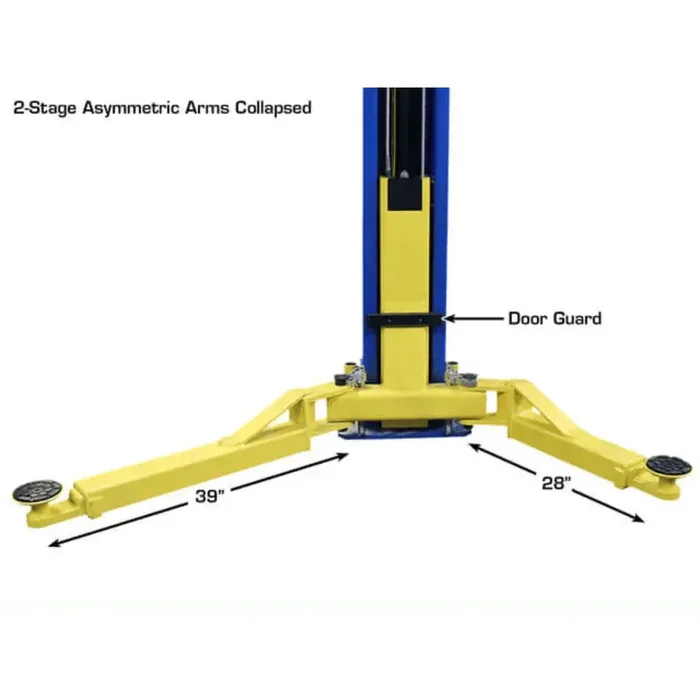

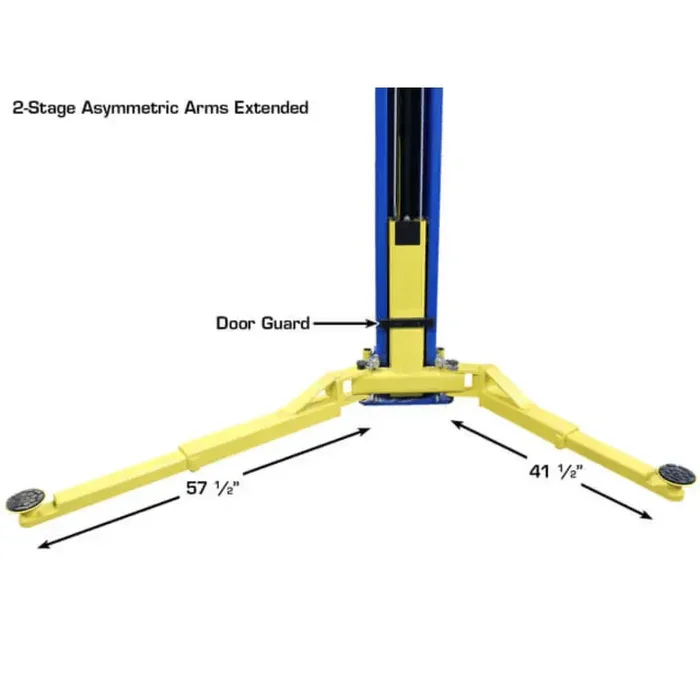

- Asymmetric/Symmetric Arms

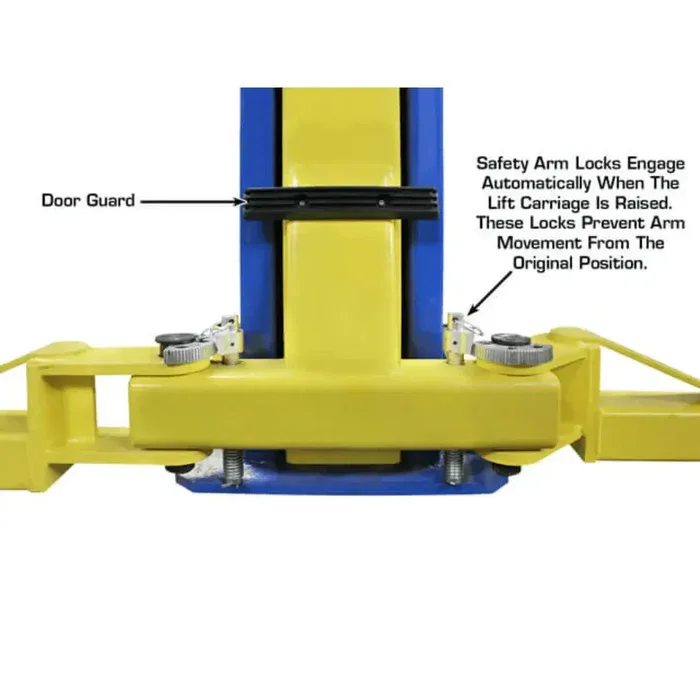

- Automatic Arm Restraints

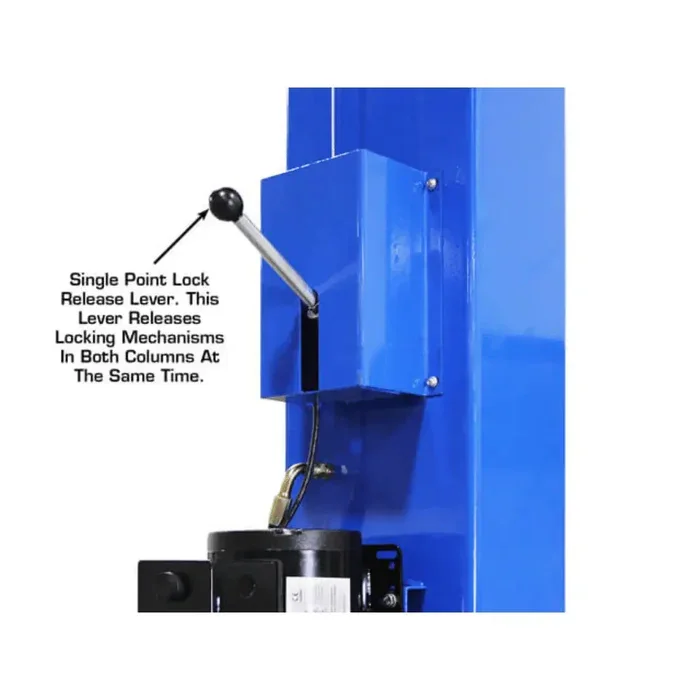

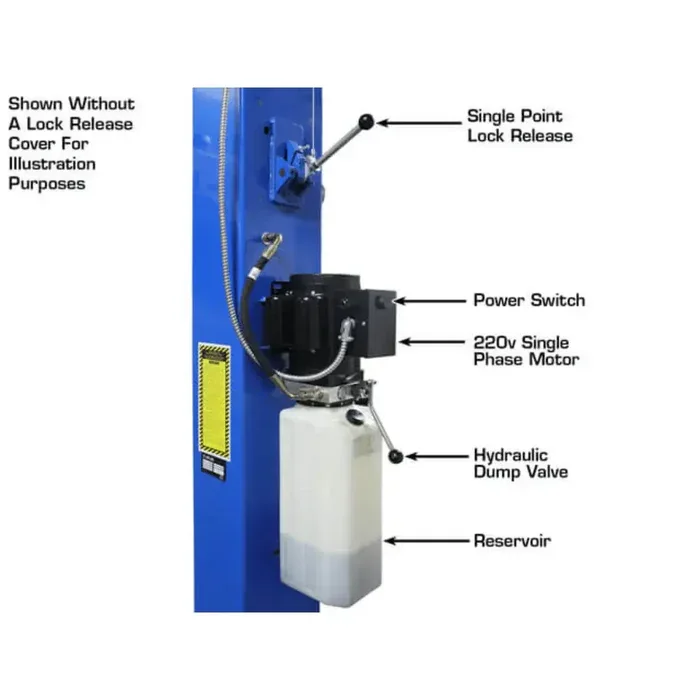

- Single-Point Lock Release
- Rubber Guards on Carriages

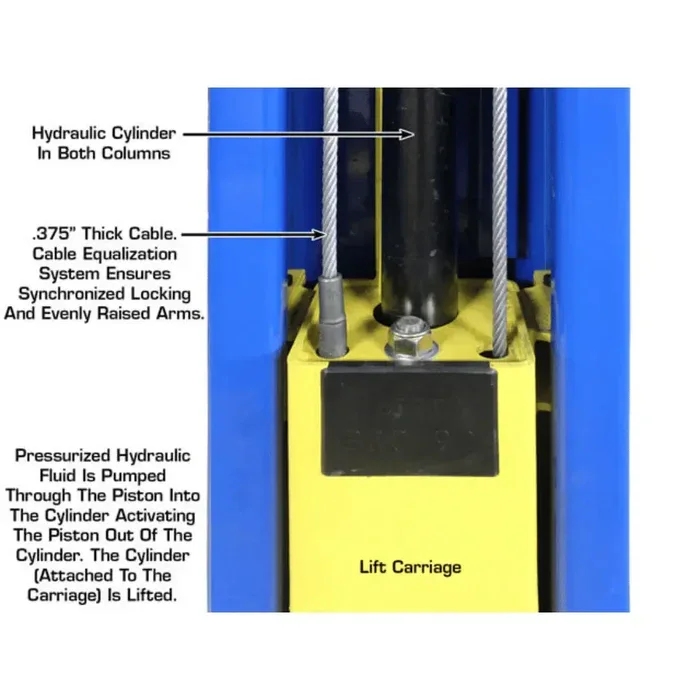

- Dual Direct-Drive Cylinders
- Powder Coat Finish

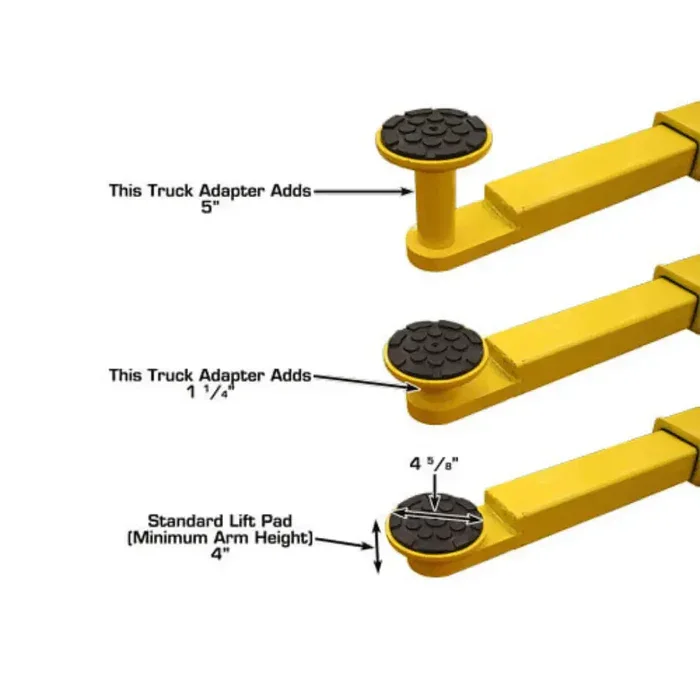

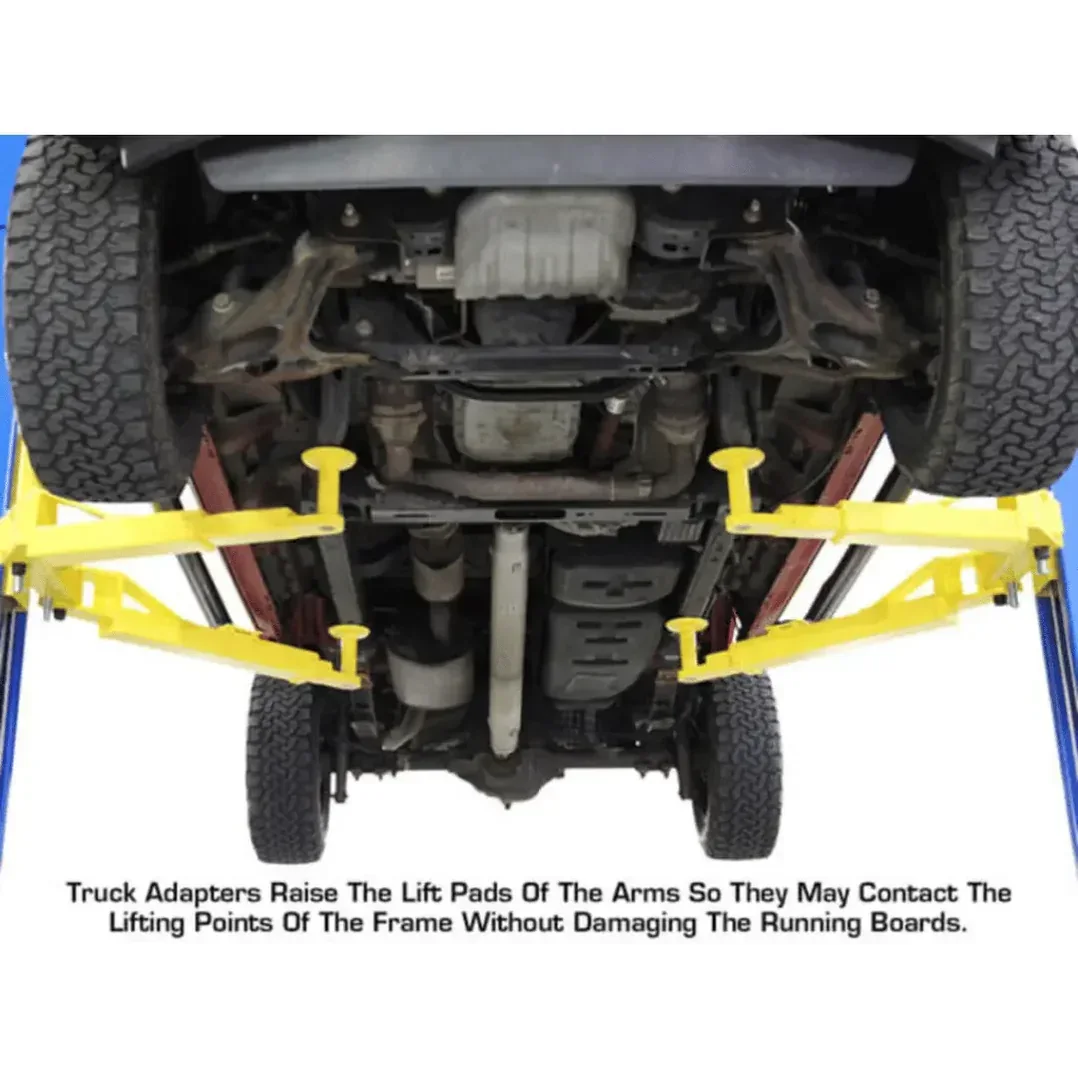

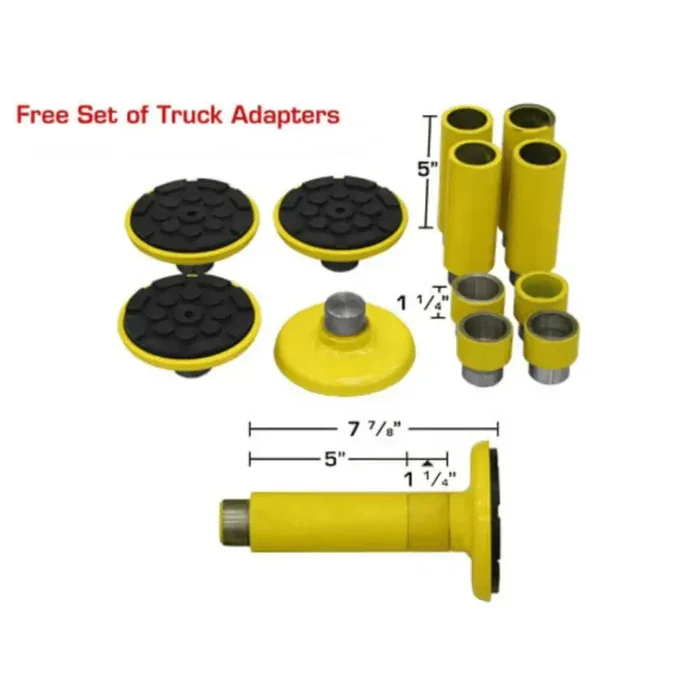

- Free 8 Piece Truck Adapter Set

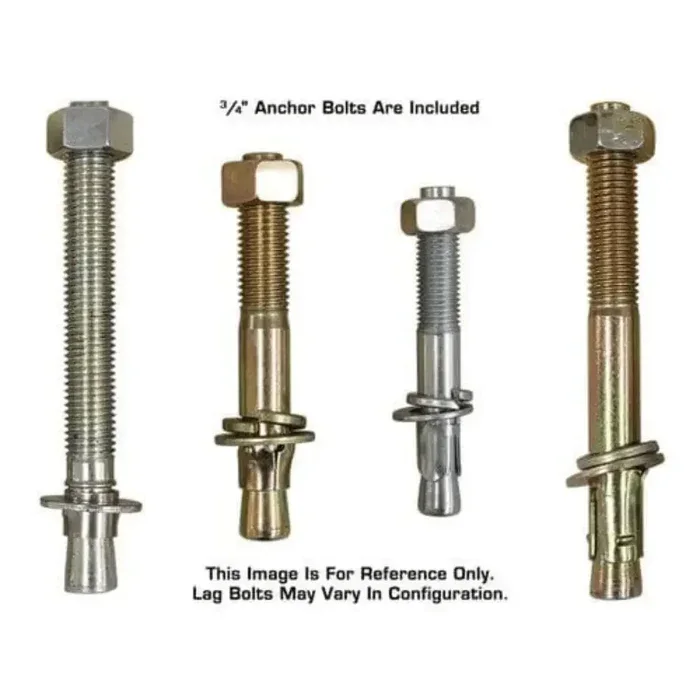

- Mounting Hardware Included

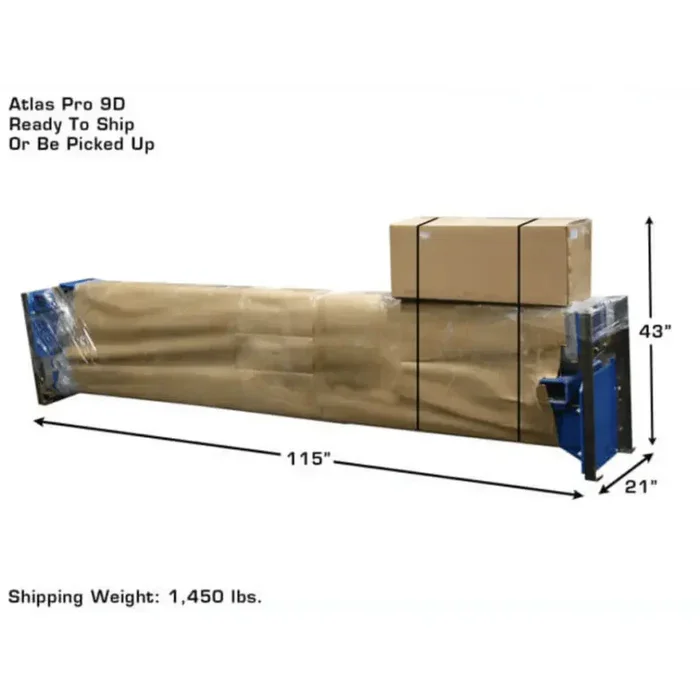

- Shipping Weight: 1,450 lbs.
- 5-year Structural Warranty, 2-year Hydraulic-Power Warranty

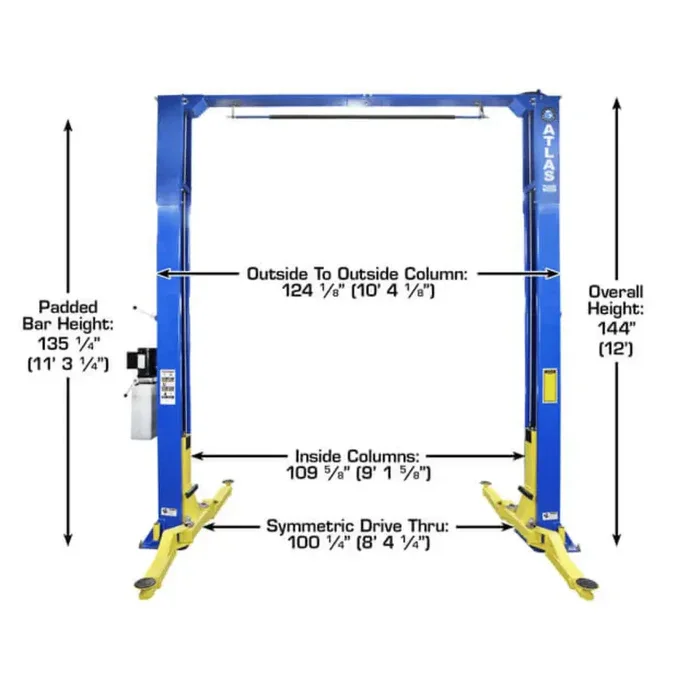

Specification

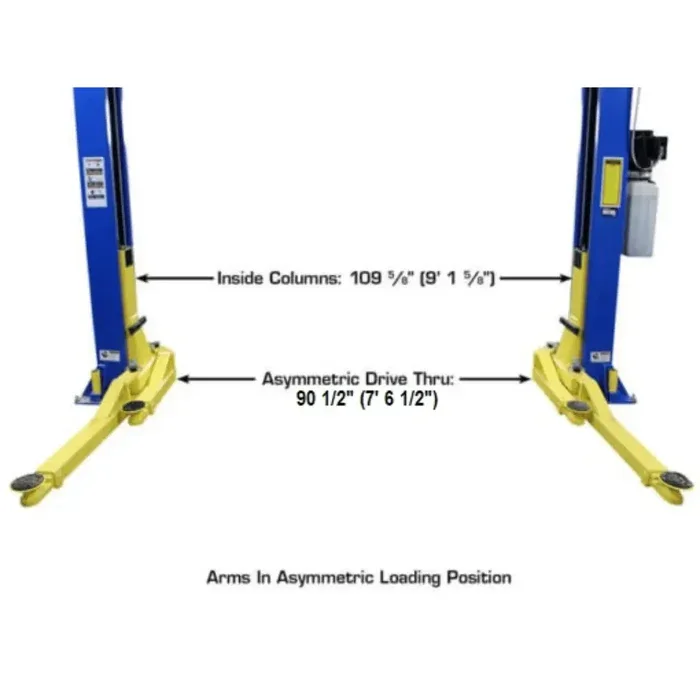

| Drive Thru Between Carriage | 90"–100" |
| Inside Columns | 110" |

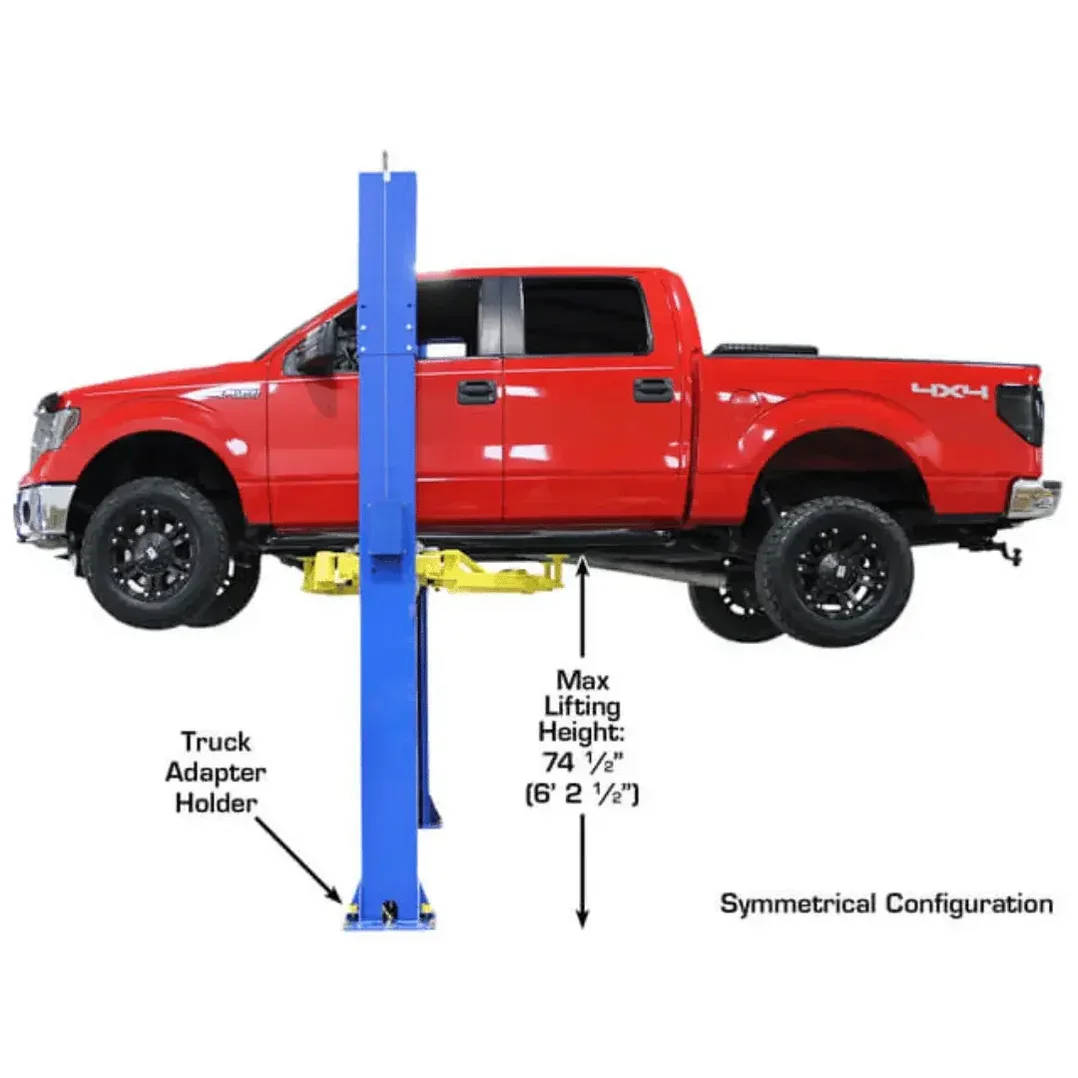

| Lifting Height (Top of Pad) | 68"–74" |
| Max Rise Under Arms | 68" |

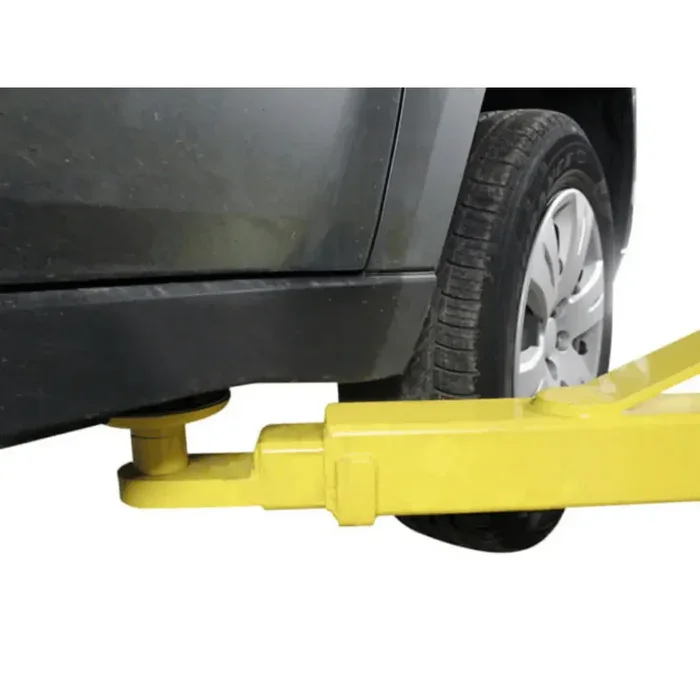

| Minimum Pad Height | 4.5" |
| Motor | 220V |

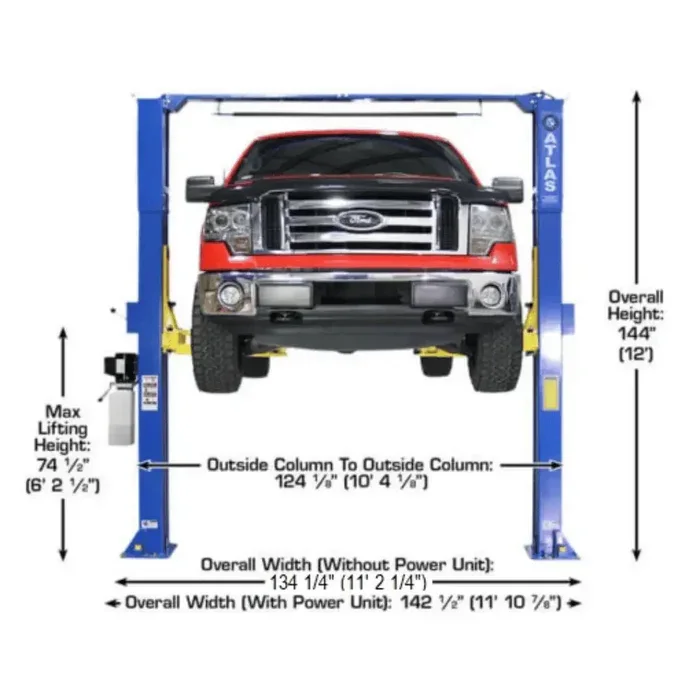

| Overall Width | 135" |
| Overall Height | 144" |
| UPC | 707543505176 |
Resources
-
For more detailed information and guidance, you can download the following:
